Kitagawa NTS309 with set of NTS-QM309 Quick jaw change base jaws Pricing & Product Details
Ranked Nr. 523 of 236 Grippers
NTS309 with set of NTS-QM309 Quick jaw change base jaws Pricing
Choose your model
NTS206 two jaw Pneumatic Parallel gripper
Parallel
NTS307 three jaw Pneumatic Parallel gripper
Parallel
NPGT08 two Jaw pneumatic Parallel gripper
Parallel
NTS208 two jaw Pneumatic Parallel gripper
Parallel
NTS210 Two Jaw Pneumatic Parallel gripper
Parallel
NTS212 Two Jaw Pneumatic Parallel gripper
Parallel
NTS216 two jaw Pneumatic Parallel gripper
Parallel
NTS220 Two Jaw Pneumatic Parallel gripper
Parallel
NTS309 Three Jaw Pneumatic Parallel gripper
Parallel
NTS311 Three Jaw Pneumatic Parallel gripper
Parallel
NTS313 Three Jaw Pneumatic Parallel gripper
Parallel
NTS317 Three Jaw Pneumatic Parallel gripper
Parallel
NPGT10 Two Jaw Pneumatic Parallel gripper
Parallel
NTS311 with set of NTS-QM311 Quick jaw change base jaws
Parallel
NTS309 with set of NTS-QM309 Quick jaw change base jaws
Parallel
Price indication:
NTS309 with set of NTS-QM309 Quick jaw change base jaws Overview
What is NTS309 with set of NTS-QM309 Quick jaw change base jaws?

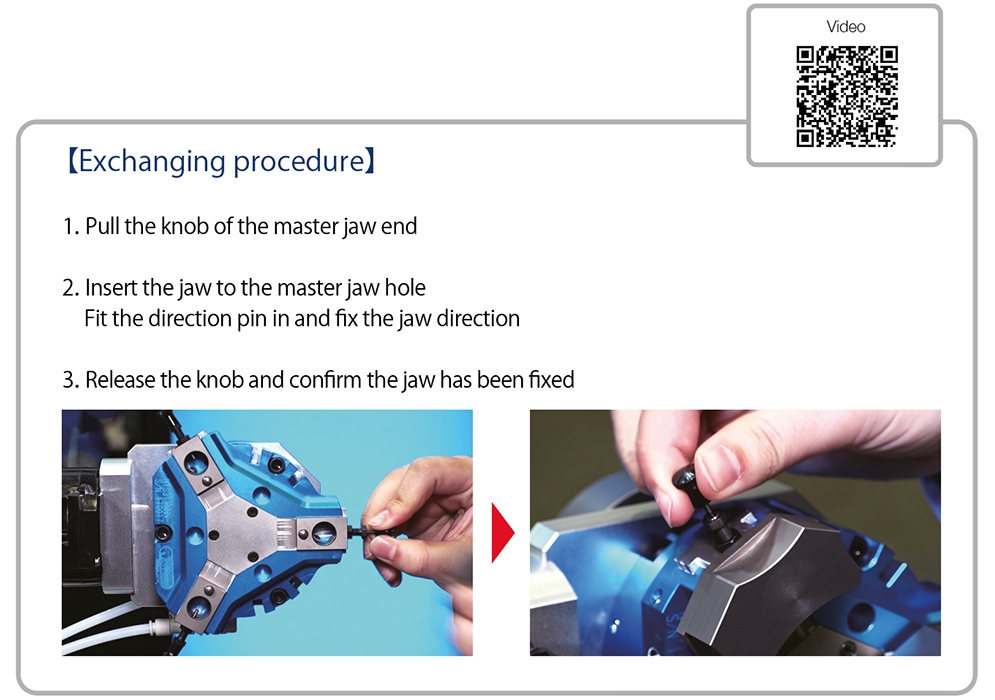

Quick jaw exchange gripper
Reduce jaw exchange time
Replace jaws without tools
Modification from an existing NTS gripper is possible

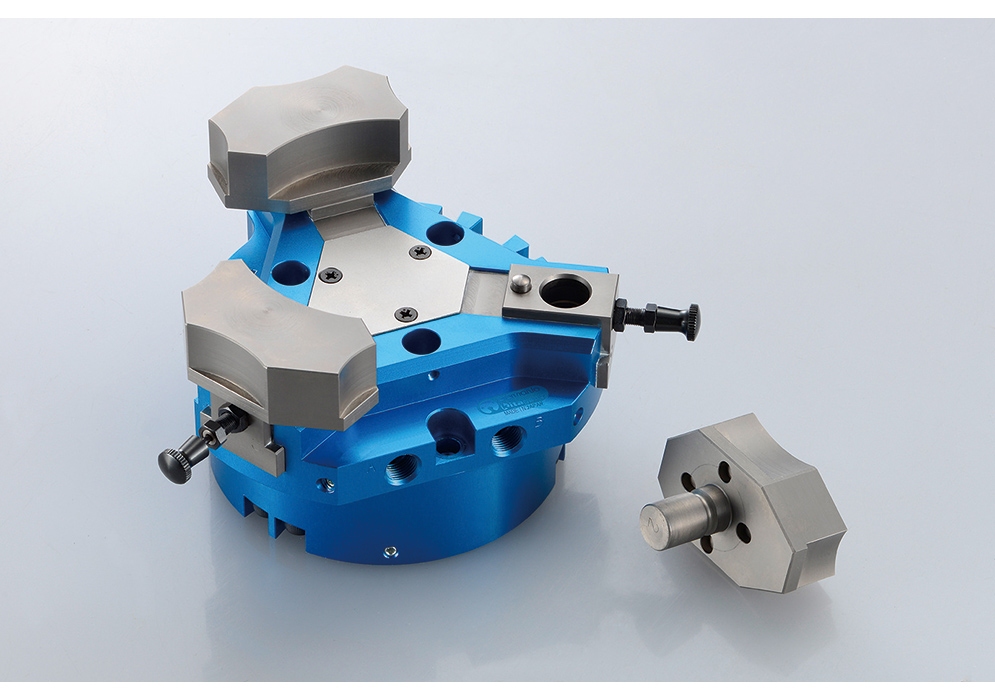

One set of hard jaws supports workpieces from φ20 to φ60 on NTS309
Proximity switches can not be used for the quick jaw change grippers.

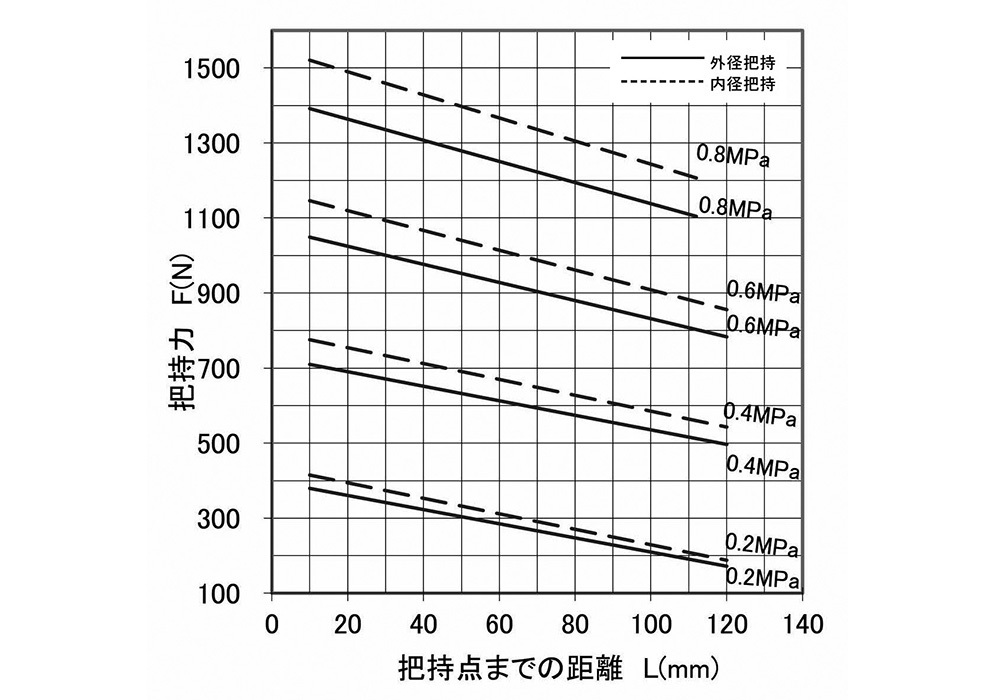

Close Force(N): 1010
Open Force(N): 1120
* Air pressure set at 0.6 MPa.
Measurement Distance L(mm): 20
Jaw Stroke: 16mm(dia.), 8mm(per finger)
What are the specifications of NTS309 with set of NTS-QM309 Quick jaw change base jaws?

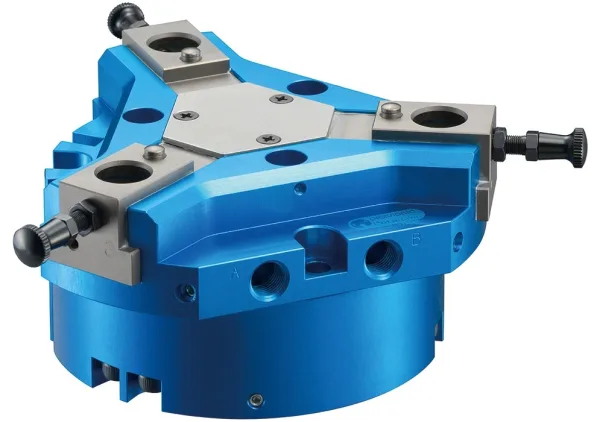

NTS309 with set of NTS-QM309 Quick jaw change base jaws Images
