Nord Modules PL-EU-Omron HD Specifications

Write a review!

FIND SUPPLIER

Add to comparison

The PL-EU-Omron HD is a high-capacity top module designed for seamless integration with the Omron HD-1500, tailored to optimize internal logistics through automation. This module is capable of handling a maximum payload of 1400 kg, making it suitable for transporting heavy EU-sized pallets (1200 x 800 mm). With dimensions of 1350 x 2×162 x 95 mm, the PL-EU-Omron HD efficiently picks up and delivers pallets from the Pallet Rack, ensuring stable handling and transport.

One of the standout features of the PL-EU-Omron HD is its robust design, which includes an industrial actuator with a ball screw spindle, a servo motor, and a dynamic brake. Its scissor lift design, coupled with cam followers and bearings in all moving joints, allows it to handle uneven loads up to 850 kg in one corner. The module also offers easy mounting on the AMR by removing 4x4 screws to access the mounting points, streamlining the setup process.

The PL-EU-Omron HD's applications are particularly relevant in manufacturing plants, warehouses, and logistics centers where heavy pallet transport is a common requirement. Its ability to autonomously lift and lower pallets in just 4.5 seconds enhances operational efficiency. Additionally, it provides valuable data collection capabilities, sending information such as total lift count and error codes to the Omron AMR. This ensures continuous monitoring and maintenance, further boosting productivity and reliability in internal logistics operations.

Choose your model:

PL-EU-MiR Product mass 85kg PL-US-MiR Product mass 85kg QL220-510-MiR Product mass 30kg QM170-MiR Product mass 30kg QM220-510 V2-MiR Product mass 30kg QM220-MiR Product mass 30kg QM70-MiR Product mass 30kg NORD Lift 60 V3 – OTTO 1500 Product mass 150kg NORD Lift EU V1 – OTTO 1500 Product mass 125kg PL-EU-Omron HD Product mass 100kg PL-EU-Omron MD Product mass 100kg PL-US-Omron HD Product mass 100kg PL-US-Omron MD Product mass 100kg QM200-Omron Product mass 35kg QM35/65-OMRON Product mass 25kg

Product mass	100 kg
Application	Agriculture Cleaning and maintenance Delivery Material handling Picking and Packing Security and surveillance Transportation
Industry	Agriculture Healthcare Logistics Manufacturing Mining Retail Warehousing
Navigation System	Inertial Laser-based Magnetic guidance Simultaneous Localization and Mapping (SLAM) Vision-based
Control Interface	Joystick or gamepad interface Programming Remote control Touchscreen Voice command
Payload	1400 kg
Type of Technology	ACR AGV AMR IMR

PL-EU-Omron HD Alternatives

See all 222 Mobile Robots

iRAYPLE C060D CE

No reviews yet.

The IRAYPLE C060D CE offers a robust lifting solution with a maximum load capacity of 600 kg, making it suitable for a variety of applications. Its compact dimensions of 950 mm×650 mm×300 mm allow it to navigate through narrow passages and accommodate different types of vehicles effectively. Equipped with laser SLAM and visual fusion navigation technologies, it ensures precise maneuvering in diverse environments, catering to various requirements.One of its standout features is the array of obstacle avoidance solutions, including laser and TOF technologies, ensuring enhanced safety during operation. Additionally, the C060D CE supports fast battery replacement, eliminating the need for extended charging times and ensuring continuous operation. With Wi-Fi connectivity offering high bandwidth and low latency, users can enjoy timely scheduling and command execution, enhancing operational efficiency.The C060D CE boasts impressive performance metrics, with a maximum operating speed of 2.0 m/s and acceleration of 1.0 m/s². Its stop position accuracy of ±10 mm and stop angle accuracy of ±1° ensure precise positioning, while features like anti-collision bar detection and sound and light alarms further enhance operational safety. Designed for versatility and reliability, this lifting solution operates effectively in a wide range of environments, with an operating temperature range of 0℃ to 40℃ and operating humidity of 5% to 90% without condensation, making it suitable for various industrial and commercial applications.

iRAYPLE C300

No reviews yet.

The IRAYPLE C300 is a formidable Omni-directional Latent AMR designed for heavy-duty applications, boasting a substantial load capacity of 3000 kg. Its impressive specifications include a no-load speed of 1.2 m/s and a rated load speed of 1.0 m/s, ensuring efficient movement of heavy loads. With optimized dimensions, it can navigate through narrower passages with a minimum width of 1400 mm, making it versatile in various industrial environments.Equipped with advanced navigation technologies such as laser SLAM and visual fusion, the C300 ensures precise maneuvering tailored to different operational requirements, enhancing overall efficiency and adaptability. Safety is paramount with this AMR, featuring multiple obstacle avoidance solutions and anti-collision bar detection on all sides, mitigating the risk of accidents and ensuring a secure working environment. Additionally, it supports fast battery replacement, eliminating downtime associated with charging, and offers Wi-Fi connectivity for seamless communication and scheduling.Performance-wise, the C300 delivers with a maximum operating speed of 1.2 m/s and a stop position accuracy of ±10 mm, guaranteeing precise positioning and maneuverability in dynamic industrial settings. With a hydraulic lifting method and a ground clearance height of 25 mm, it efficiently handles heavy loads while navigating through various obstacles. Overall, the IRAYPLE C300 is a robust solution for material handling tasks in manufacturing, logistics, and warehousing industries, offering reliability, efficiency, and safety in demanding environments.

iRAYPLE C100D CE

No reviews yet.

The IRAYPLE C100D CE presents a robust solution for lifting tasks, boasting a maximum load capacity of 1000 kg. With a focus on adaptability, it features optimized dimensions that enable smooth navigation through narrow passages and accommodate various vehicle types effectively. Equipped with advanced navigation technologies such as laser SLAM and visual fusion, it ensures precise and reliable operation tailored to diverse requirements, enhancing overall efficiency.Safety remains paramount with the C100D CE, as it incorporates multiple obstacle avoidance solutions, including laser and TOF technologies, to mitigate collision risks effectively. Moreover, its support for fast battery replacement eliminates downtime associated with charging, ensuring continuous operation when power is needed. With Wi-Fi connectivity offering high bandwidth and low latency, users benefit from timely scheduling and command execution, enhancing productivity in demanding environments.Performance-wise, the C100D CE delivers with a maximum operating speed of 1.5 m/s and a stop position accuracy of ±10 mm, ensuring precise positioning and maneuverability. Features like anti-collision bar detection and sound and light alarms further enhance operational safety. Designed for versatility and reliability, this lifting solution operates efficiently across a range of environments, making it suitable for applications in manufacturing, logistics, and warehousing industries, among others.

Nord Modules PL-EU-Omron MD

Product mass 100kg

No reviews yet.

The PL-EU-Omron MD is a highly efficient top module designed for compatibility with the Omron MD-650 and MD-900 autonomous mobile robots. This module is engineered to enhance internal logistics by automating the transportation of EU-sized pallets. With dimensions of 1187 x 2×162 x 145 mm, it is capable of handling payloads of up to 575 kg for the MD-650 model and 825 kg for the MD-900 model. The lifting speed is uniform at 4 seconds for both lifting and lowering operations, ensuring swift and stable transport.One of the standout features of the PL-EU-Omron MD is its robust design, which includes an industrial actuator with a ball screw spindle, a servo motor, and a dynamic brake. The scissor lift design with cam followers and bearings in all moving joints allows it to handle uneven loads effectively. Additionally, the module can be easily mounted on the AMR by removing 4x4 screws to access the mounting points, facilitating quick and secure installation.The applications of the PL-EU-Omron MD are particularly suited for manufacturing plants, warehouses, and logistics centers where the efficient and stable transport of EU-sized pallets is crucial. It enables the MD-650 and MD-900 robots to autonomously lift and lower pallets from the P&D Cantilever Stand and Pallet Rack MD. The module's longevity, with a minimum of 600,000 lift cycles at maximum payload, coupled with its data collection capabilities, including total lift count and error codes, ensures reliable performance and continuous monitoring, enhancing productivity and operational efficiency.

Nord Modules NORD Lift EU V1 – OTTO 1500

Product mass 125kg

No reviews yet.

The NORD Lift EU V1, designed for compatibility with the OTTO 1500, is a robust top module that automates the transportation of EU-sized pallets. With dimensions of 1371 x 853 x 154 mm, it offers a substantial lifting capacity of 1500 kg and a lifting height of 60 mm. This module is specifically tailored for stable handling and transport of pallets, making it a reliable addition to internal logistics systems.One of the key features of the NORD Lift EU V1 is its compatibility with the NORD P&D Stand Cantilever 1200, allowing it to autonomously pick up and deliver pallets. The module can lift pallets to a height of 60 mm in just 4 seconds, ensuring efficient and stable transportation. Weighing 125 kg, it is capable of handling uneven weight distribution, which is crucial for maintaining stability during transport.The applications of the NORD Lift EU V1 are particularly suited to environments that require efficient and stable transport of heavy EU-sized pallets, such as manufacturing plants, warehouses, and logistics centers. Its high lifting capacity and ability to handle uneven weight distribution make it an ideal solution for optimizing internal logistics and increasing productivity. The module's long lifespan of over 600,000 lifts and features like stack light with status feedback and data collection further enhance its reliability and functionality.

Nord Modules PL-US-Omron HD

Product mass 100kg

No reviews yet.

The PL-US-Omron HD is a versatile top module designed to enhance the capabilities of the Omron HD-1500 autonomous mobile robot. With dimensions of 1592 x 1091 x 94 mm, this module is engineered for the efficient and stable handling of US-sized pallets up to 40x48 inches. It has a maximum payload capacity of 1400 kg and can lift pallets autonomously in just 4 seconds, making it ideal for optimizing internal logistics in various industrial environments.One of the standout features of the PL-US-Omron HD is its robust design, which includes an industrial actuator with a ball screw spindle, servo motor, and dynamic brake. The scissor lift design with cam followers and bearings in all moving joints ensures smooth and stable operation, even with uneven loads of up to 850 kg in one corner. The module's easy mounting system, which involves removing 4x4 screws to access the mounting points on the AMR, simplifies installation and integration.The PL-US-Omron HD is particularly well-suited for use in manufacturing plants, warehouses, and logistics centers where the automated transportation of heavy pallets is essential. Its ability to handle large payloads, coupled with a lifespan of 600,000 lift cycles at maximum payload, ensures long-term reliability and efficiency. Additionally, the module features a stack light for process status, service needs, and error feedback, as well as data collection capabilities that include total lift count and error codes, providing valuable insights for maintenance and operational optimization.

Nord Modules PL-EU-MiR

Product mass 85kg

No reviews yet.

The PL-EU-MiR Pallet Lift from Nord Modules is an advanced top module designed to optimize internal logistics by automating the transportation of pallets within a facility. This module is compatible with several Mobile Industrial Robots (MiR) models, including the MiR500, MiR600, MiR1000, and MiR1350. It can lift and transport EU size pallets with dimensions of 1200 x 800 mm and a maximum payload of 1250 kg. The PL-EU-MiR can lift pallets autonomously from a pallet rack, providing stable handling and transportation.A standout feature of the PL-EU-MiR is its robust design and durability. It utilizes an industrial actuator with a ball screw spindle, a servo motor, and a dynamic brake, complemented by a scissor lift design with cam followers. This configuration allows it to handle uneven loads of up to 850 kg in one corner. The module is built for longevity, with a minimum life expectancy of 600,000 lift cycles at maximum payload. Its bearings in all moving joints and straightforward mounting process ensure ease of use and maintenance.In terms of communication and power, the PL-EU-MiR interfaces via Modbus and is equipped with a stack light for process status, service needs, and error feedback. It operates on 48V safe power for the drive and 24V for the controller. Additionally, the module can collect and send essential data, such as total lift counts and error codes, to the MiR AMR for monitoring and analysis. This capability enhances operational efficiency and ensures seamless integration into automated logistics workflows.

Nord Modules PL-US-Omron MD

Product mass 100kg

No reviews yet.

The PL-US-Omron MD is a robust and versatile top module designed for compatibility with the Omron MD-650 and MD-900 autonomous mobile robots. With dimensions of 1187 x 944 x 105 mm, this module is engineered to optimize internal logistics by automating the transportation of US-sized pallets. It has a maximum payload capacity of 550 kg for the MD-650 model and 800 kg for the MD-900 model, with a lifting speed of 4 seconds both up and down, ensuring efficient and stable handling of pallets.A key feature of the PL-US-Omron MD is its industrial design, which includes an actuator with a ball screw spindle, a servo motor, and a dynamic brake. The scissor lift design with cam followers and bearings in all moving joints allows for smooth operation and the handling of uneven loads. The module is also designed for easy mounting on the AMR, with access to the mounting points facilitated by removing 4x4 screws. This makes integration with the Omron MD-650 and MD-900 straightforward and efficient.The PL-US-Omron MD is particularly suited for use in manufacturing plants, warehouses, and logistics centers where the automation of pallet transportation is critical. Its ability to handle significant payloads, coupled with a lifespan of over 600,000 lift cycles at maximum payload, ensures long-term reliability and efficiency. Additionally, the module's communication capabilities, including stack lights for process status and error feedback, and data collection features such as total lift count and error codes, provide valuable insights for maintenance and operational optimization. Optional add-ons like payload measurement and QR-/Barcode scanners further enhance its functionality, making it a comprehensive solution for internal logistics automation.

Nord Modules PM1000-Omron HD

Product mass 230kg

No reviews yet.

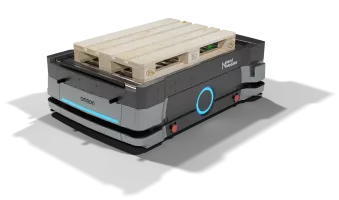

The PM1000-Omron HD Pallet Mover is a high-capacity solution designed to enhance the logistics capabilities of the Omron HD-1500 autonomous mobile robot. It is engineered to handle and transport heavy pallets, with a maximum handling capacity of 1270 kg. The pallet mover integrates seamlessly with the Nord Modules Pallet Conveyor, Dock Target, and Spacer Kit, facilitating smooth and efficient pallet pick-up and delivery operations in various industrial settings. Its dimensions are 1650 x 1138 x 171 mm, and it operates at a speed of 200 mm/sec.One of the standout features of the PM1000-Omron HD is its robust design that ensures safe and reliable transport of both EU and US-size pallets. The height from the floor to the top of the rollers is 504 mm, with an optional extension up to 800 mm, allowing for versatility in handling different pallet types. The device includes 4-sided guard rails and brakes on all rollers, ensuring secure transport of heavy payloads. Additionally, it employs PLC controller and servo technology for precise control and high-level feedback, including operational status via a stack-light system.In terms of applications, the PM1000-Omron HD excels in optimizing internal logistics within manufacturing plants, distribution centers, and warehouses. Its ability to communicate wirelessly with external roller conveyors via integrated technology enhances operational efficiency. The pallet mover's “roll through solution” enables loading and delivery from both the front and rear ends, making it highly adaptable to various logistics workflows. The option for rubber-coated rollers and automatic speed synchronization further boosts its capability to handle diverse operational requirements.
