Onexia PalletizCRX Specifications

Write a review!

Ranked Nr. 50 of 61 Turnkey Robot Solutions

FIND SUPPLIER

Add to comparison

Manufactured by ONExia, a FANUC Authorized Systems Integrator specializing in collaborative robots, the PalletizCRX is a turn-key palletizer using the FANUC CRX-10iA/L cobot.

By using a FANUC cobot, the PalletizCRX requires no physical guarding to operate within the work cell drastically decreasing the footprint of adding automation.

The PalletizCRX is a fully collaborative solution for FANUC users looking for a flexible alternative to standard industrial palletizing robots.

PalletizCRX Features:
The PalletizCRX requires no programming and can be deployed to an existing packaging line in under an hour.

Minimal footprint - no guarding or caging needed
Portable - easily moved with a forklift or pallet jack
Collaborative - full rating for entire system
Quick deployment - requires a standard outlet and an air line
Continuous operation - palletize to both sides

Extra info

SYSTEM SPECS: Rate- 5 cases per minute / Payload- 18 lbs (tooling dependent) / Pallet- 40" x 48" x 62" (maximum height) / Case Sizes- 8" x 8" x 3" (minimum size) / Air / Electric- 80 psi / 115 VAC, 15 amps / CUSTOM FEATURES: Slip Sheets- Yes - optional rack available / Conveyors- Nesting conveyor & pneumatic pusher / SYSTEM SAFETY: The PalletizCRX is collaborative rated / Safety Scanners (Optional)- Up to 3 scanners can be added / A safety risk assessment is recommended.

PalletizCRX Alternatives

See all 85 Turnkey Robot Solutions

Qviro Palletizer FANUC CRX10AiL + Lift Column

No reviews yet.

The FANUC CRX10AiL Palletizer features a compact design with a lifting capacity of up to 10 kg, making it suitable for various warehouse tasks. With a maximum stacking height of 1400 mm, this robotic arm optimizes space utilization by enabling efficient pallet stacking. It operates at a cycle rate of up to 8 picks per minute, enhancing throughput in material handling processes.Designed to accommodate two pallets on either side of the lift pedestal, the system includes a feeding conveyor to facilitate smooth material flow. Its dimensions (2463 mm length, 1024 mm width, and 1215 mm height) allow for effective integration into existing workflows. The lift column feature further maximizes pallet height, ensuring efficient use of vertical space.This palletizing solution is customizable, allowing for adjustments in dimensions and configurations based on specific operational requirements. Its versatility makes it suitable for various industries, including food and beverage, consumer goods, and manufacturing, where efficient palletization is critical for productivity.NAMEVALUEUNITLifting Capacity10kgStacking Height1400mmCycling Time8picks/minLength2463mmWidth1024mmHeight1215mm

Qviro Machine tending with 1 tray and 1 cobot CRX-10iA

No reviews yet.

The machine tending workcell features a CRX-10iA robotic arm with a payload capacity of 10 kg, optimized for handling various raw material blanks and finished parts. This compact cell is designed with a mobile pedestal that includes a single tray, providing a working area of 0.7 m². Its layout is suited for efficient integration into existing workflows, enabling the robot to autonomously manage material handling tasks with precision.The system's compact dimensions (1000 mm width, 1278 mm length, and 1037 mm height) make it suitable for facilities with limited space while still maximizing operational efficiency. The tray can be customized to accommodate specific part shapes and sizes, allowing for flexibility in handling different materials. This adaptability enhances the workcell's utility across various manufacturing environments.Additionally, the design facilitates easy deployment and quick setup, enabling operators to launch the cell with minimal downtime. Customization options allow users to modify dimensions, configurations, and quantities to meet their unique requirements, making it ideal for applications in manufacturing, assembly, and production lines where machine tending is essential.NAMEVALUEUNITWidth1000mmHeight1037mmArea for Parts0.7m²Max Payload10kgLength1278mm

Qviro Palletizer with CRX25iA, 2 pallet stations, 1 Robotize U24W AMR and 1 charger station

No reviews yet.

The collaborative robotic palletizer features a CRX25iA arm with a load capacity of up to 30 kg, designed for efficient palletizing operations. It organizes products and boxes onto pallets for shipping at a stacking height of 2200 mm and a cycling time of 8 picks per minute. This system is particularly advantageous for facilities aiming to automate their palletizing processes while maintaining flexibility and ease of use.A key differentiator of this solution is its complete autonomy. The included Robotize U24W AMR, with a load capacity of 1200 kg, eliminates the need for human intervention in the pallet handling process. It autonomously removes loaded pallets from the pallet stations and repositions empty pallets, ensuring a continuous workflow without the use of forklifts. This level of automation enhances operational efficiency and reduces labor costs.Additionally, the system is equipped with a dedicated charging station, allowing the AMR to autonomously recharge as needed. This feature ensures minimal downtime and maximizes productivity in warehouse environments. The palletizer can be customized to accommodate specific requirements, making it suitable for a variety of industries, including food and beverage, consumer goods, and logistics.NAMEVALUEUNITMax Payload30kgLength4950mmWidth4400mmHeight2300mmStacking Height2200mmCycling Time8picks/minPallet TypesUS

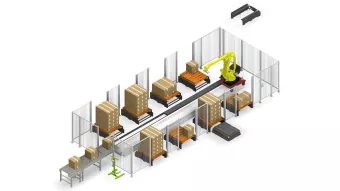

Qviro Palletizer with 7th axis and one AMR tending 8 pallet stations around

No reviews yet.

The FANUC M410iB-140H industrial palletizer is designed for high-capacity operations, featuring a payload of up to 140 kg. It is mounted on a Gudel Track Motion Floor (TMF-3), which provides an additional axis of movement, allowing it to tend to eight pallet stations efficiently. With a maximum stacking height of 3200 mm, the robot can achieve up to 1900 palletizing cycles per hour, making it one of the fastest palletizing solutions in its class.This system integrates seamlessly with a McMaster conveyor for product feeding, ensuring a continuous supply to the palletizer. After the palletizing process, an autonomous mobile robot (AMR) transports the finished pallets to subsequent processes, enhancing overall logistics efficiency. The AMR features self-charging capabilities with dedicated power stations, which minimizes downtime and optimizes operational workflows.Customizable in terms of dimensions and configurations, this palletizing solution can be tailored to meet specific industry requirements, making it suitable for diverse applications, including manufacturing, food and beverage, and consumer goods. Its robust design and high throughput make it ideal for environments where efficiency and scalability are critical. NAMEVALUEUNITLength20000mmWidth10560mmHeight3200mmMax. Speed Robotup to 1900 palletizing cyclescycles/hMax. Speed Track Motion Floor120-150m/minStacking Height3200mmAxes6Lifting Capacity140kgTrack Motion Floor Payload20000-40000N

FANUC Collaborative Educational Package

No reviews yet.

The FANUC Collaborative Educational Package introduces students to the world of collaborative robot (cobot) learning, featuring the CRX-10iA collaborative robot. Designed for educational institutions and training centers, this package equips students with core programming skills essential for future careers in robotics. With a strong emphasis on modern applications, instructors receive comprehensive content to nurture the next generation of robotics specialists.The FANUC CRX-10iA collaborative robot boasts impressive specifications, including a 6-axis design, 10kg payload capacity, and a reach of 1249mm. Paired with the R-30iB Mini Plus Controller and Tablet Teach Pendant, the robot offers intuitive control and connectivity options, such as connectors for cameras and configurable I/O, enabling versatile teaching and learning experiences. The educational cell features a robust aluminum frame with wheels for easy transport and customizable work surfaces, ensuring adaptability to various teaching scenarios.Prepared for Industry 4.0/IoT integration, the package includes Ethernet software support and interfaces for remote access, diagnostics, and vision systems. Additionally, the education software bundle offers a ready-to-run solitaire application with iRVision and Dual Check Safety, along with PC simulation software for students, allowing for virtual practice and experimentation. Instructors receive comprehensive training materials to effectively teach robot operation, while students benefit from access to simulation software to enhance their learning experience.

Onexia PalletizHD

No reviews yet.

Minimal footprint, end of line packaging automation.This is more than just a collaborative robot placing boxes on a pallet.Why choose a PalletizHD for your packaging line?Designed and built by a robotics integrator specializing in cobots, the "HD" is a fully automated palletizer that can easily be added to existing packaging lines. WHAT IT MEANS TO BE "HD" The PalletizHD is one of the most robust collaborative palletizers on market. Built on a durable and portable welded frame, the "HD" easily automates palletizing applications that are typically done by human labor.High payload cobot - featuring a 38 lb payload, the "HD" can handle heavy cases that are difficult for humans to consistently stack.Increased pick rate - using a custom end-effector, multiple lighter weight cases can be picked at once.Vertical reach - the "HD" is capable of stacking pallets up to 105 inches in height by utilizing the built-in collaborative lifter. PALLETIZING SOFTWAREAutomate palletizing without writing a line of code.Every PalletizHD comes with our custom palletizing software preloaded on the embedded touchscreen interface.Drag-and-drop user interface.Custom designed by ONExia, end-users can easily add and edit pallets with no programming required!
