Photonfocus OEM-D1024E-160-LC Pricing & Product Details
Ranked Nr. 66 of 126 2D Vision Systems
OEM-D1024E-160-LC Pricing
Choose your model
BL1-D1024E-160-CL
Monochrome
BL1-D2048x1088-96-G2
Monochrome | Near-infrared
HD1-D1312-80-G2
Monochrome
MV1-D1280-120-CL
Monochrome | Color
OEM-D1024E-160-LC
Monochrome
OEM-D2080-160-LC
Monochrome | Near-infrared
MV1-D1312-240-CL
Monochrome | Near-infrared
DR1-D1312-200-G2
Monochrome | Near-infrared
Price indication:
OEM-D1024E-160-LC Overview
What is OEM-D1024E-160-LC?
For customer that prefer to design their own camera solution but do not want to spend time on the sensor integration we offer a range of OEM camera modules. All of the features and technical data are identical to the standard cameras except for the interface board which is not included. Thus making it a perfect solution to interface to your own embedded vision system.

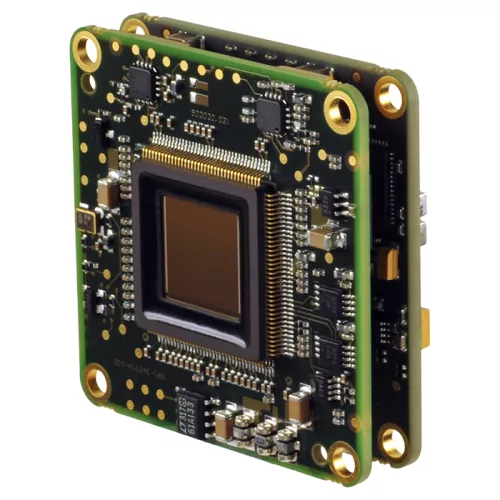

The module OEM-D1024E-160-LC is based on the Photonfocus A1024B CMOS image sensor. This Photonfocus CMOS sensor with a full well capacity (FWC) of 200 ke- is optimized for high dynamic range applications and a high signal to noise ratio (SNR). The module has a parallel interface.
These modules focus on demanding applications in industrial image processing. They offer an extraordinary wide dynamic range due to the LinLog® technology and a high framerate combined with high resolution. Due to the global shutter, even high-speed applications with exposure times in the µs-area are possible
FEATURES:
- Configurable region of interest (ROI)
- Up to 512 regions of interest (MROI)
- Decimation in y-direction
- Image correction
- 2 look-up tables (12-to-8Bit) on user-defined image region (Region-LUT)
- Constant frame rate independent of exposure time
- Crosshairs overlay on the image
- Temperature monitoring of camera
- Camera informations readable over SDK
- Ultra low trigger delay and low trigger jitter
- Extended trigger input and strobe output functionality
- Status line in picture
What applications is OEM-D1024E-160-LC product best for?
Industrial Automation
Fully automated production, self-learning machines and robots: Many Industry 4.0 applications rely on machine vision and the depth of detail in image data. High-precision embedded vision systems are used in process and quality control, as well as for measuring object and surface characteristics. Photonfocus develops and produces both sensors for integration into existing systems and ready-to-use solutions with onboard decision-making.
Agriculture
Increasingly, the digitalized agriculture and forestry industry relies on visual systems. For example, the use of drones with hyperspectral cameras enables the detection of parasite infestation, plant diseases, or the assessment of the degree of maturity of the crop. Our sensors do what the human eye cannot see and assist the agriculture industry on the way to more efficient solutions that are future-proof.
Automotive
Numerous applications in the automotive industry rely on fully automatic inspection systems for checking production processes, object properties and quality. High-precision embedded vision systems perform 2D and 3D image acquisition simultaneously, thereby ensuring that industrial robots and production plants are as profitable and productive as possible.
Material Processing
Fully automated sorting processes save the use of humans for monotonous and tedious activities. Photonfocus sensors are highly reliable when it comes to deciding which foods can be resold or which are spoiled, or separating waste into glass, plastic, metal or other materials.
Traffic & Transport
Embedded vision applications count and identify vehicles in road traffic and thus influence traffic. In rail applications, precise measuring technology with machine vision inspects tracks and train components, detecting wear and defects. At the same time, intelligent onboard solutions give train drivers and maintenance staff direct feedback regarding the condition of the route, thereby ensuring safety and keeping downtimes to a minimum.
What are the specifications of OEM-D1024E-160-LC?
| Image Type |
|
