Pickit 3D M-HD2 Specifications

No reviews yet.
Write a review!

Ranked Nr. 17 of 93 3D Vision Systems

VISIT WEBSITE

See all 93 3D Vision Systems

Introducing the M-HD2, a state-of-the-art 3D vision camera, meticulously designed to offer exceptional accuracy in detecting small and medium-sized objects. This compact device is an ideal choice for robot-mount applications, owing to its lightweight and versatile form. Regardless of the robot brand you use, the M-HD2 fits seamlessly, making it a perfect tool for various industrial applications.

The M-HD2 shines when it comes to performance, especially with objects starting from the size of 10x10x5 mm. Whether you are dealing with small parts or surfaces, this camera guarantees top-notch performance, providing two times better camera accuracy than the M-HD model. Equipped with a robust Ethernet connection, it works flawlessly with the Pickit processor.

Choose your model:
M-HD2 Working distance 500-1100 mm Billet Picker Monochrome | Multispectral Edu Kit "Monochrome | Near-infrared" Pickit SD2 Working distance 800-2000 mm Pickit XL-HD2 Working distance 2040-3240 mm L-HD2 Working distance 800-2700 mm
Application
  • AR/VR Integration
  • Object Recognition & Control
  • Precise Measurement & Guiding
  • Quality Control & Inspection
  • Robotics & Automation
  • Security & Surveillance
Working distance 500-1100 mm
Industry
  • Education
  • Automotive
  • Food and Beverage
  • Packaging
  • Healthcare
  • Electronics
  • Aerospace and Defense
  • Energy and Utilities

M-HD2 Alternatives

See all 159 3D Vision Systems

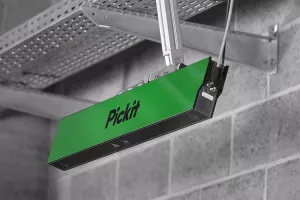

Pickit 3D Pickit XL-HD2
Working distance 2040-3240 mm
No reviews yet.
XL-HD2 is the first XL camera of its kind offered by Pickit 3D. As the name implies XL is an ‘extra-large’ solution to support new applications.Benefits of our XL-HD2 camera:New applications including those involving large bins or pallets requiring a fixed camera, as well as applications with shiny objects.5MP camera based on laser triangulation.Fast scanning and high-performance 3D point processingMechanically robust with waterproof connectors and IP 65 rating
Pickit 3D L-HD2
Working distance 800-2700 mm
No reviews yet.
L-HD2, which succeeds the L-HD and complements our existing M-HD2 camera. Built on the same hardware platform as the M-HD2, the L-HD2 is suitable for both stationary and robot-mounted applications, delivering exceptional stability and performance.Benefits of our L-HD2 camera:•Improved accuracy•Larger field of view•Exceptional point clouds•Designed for industrial environments, featuring an Ethernet connection
MECH MIND LOG S
No reviews yet.
The Mech-Eye LOG S camera is ideal for applications where shorter working distances are sufficient. Such as bin picking, sorting, picking as well as the localization of small components. The LOG S, along with the Nano camera, is one of Mech-Mind’s small cameras that can be easily mounted on robots. The enhanced version of the Mech-Mind LOG S offers a higher camera resolution. Aluminum Alloy Shell DesignThe camera adopts aluminum alloy shell design, with firm structure, high hardness, wear resistance and corrosion resistance. The camera housing is electrically insulated and can operate long in a real industrial environment.Precision Options Meet Various Distance RequirementsMultiple camera models are provided to support short, middle and long distance scanning with high precision and high speed.Dust and Water ProofThe camera is dust and water proof with IP65 Enclosures Standards. It can operate long in harsh environments.Stable and Reliable Scanning PerformanceThe camera has passed the endurance test of 10000 hours in labs. It is stable and reliable.Plug & Play Easy SetupThe camera is plug-and-play and easy to install. It supports multiple installation ways (Eye to Hand, Eye in Hand). Mech-Eye Viewer software can help configure the best imaging parameters.Multiple Camera Models for Various SituationsA variety of camera models can meet the diverse practical needs such as ambient light resistance, high precision, high speed, and small size.

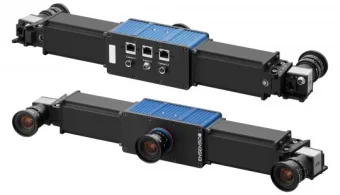

IDS ENSENSO X SERIES
Working distance 0mm
No reviews yet.
The modular and flexible 3D camera system The Ensenso X series is a modular and ultraflexible 3D camera system. The projector module with 100 W LED projector power is equipped with an integrated Gigabit Ethernet switch and can be combined with selected GigE uEye camera models to a customised 3D camera system. The camera mounting brackets are available in a range of widths to allow for the implementation of base lines with different sizes. You can also configure the camera's angle of view and choose between various C-mount lenses with different focal lengths for the camera and projector. This flexibility facilitates a wide range of working distances of more than 5 metres, allowing you to capture objects with volumes of several cubic metres, e.g. heavily-laden pallets or entire rooms. You can choose between camera models with 1.3 megapixel or 5 megapixel resolution for an even greater field of view and a higher level of detail. For particularly high demands on robustness, the Ensenso X30 and Ensenso X36 3D camera systems are optionally available with IP65/67 and therefore protected against dirt, dust, water splashes or cleaning agents as well as accidental shifting of the optics.

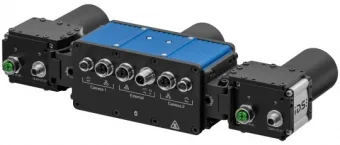

IDS ENSENSO XR SERIES
Working distance 0mm
No reviews yet.
The modular 3D camera system with onboard processing The Ensenso XR series combines the flexible, modular design of the Ensenso X series with the advantages of an embedded system. The new powerful XR projector unit with integrated system on chip processes the image data independently, making 3D data available directly from the camera. The 3D performance of the XR series can compete with that of a powerful Core i7 desktop CPU. By shifting the compute-intensive calculations to the camera, they no longer have to be performed by powerful industrial PCs. In addition, the transfer of 3D result data instead of high-resolution 2D raw data reduces the network load. Multi-camera systems in particular benefit from the resource-saving features of the new XR series. A built-in front light supports calibrating the work environment as well as the image quality of the 2D camera images. Besides the GigE data connection, an additional WiFi interface is planned, which will be very useful for temporary access to data and parameters when wiring is difficult or cost-intensive.Similar to the X-series, the XR-series can be flexibly adjusted with selected GigE uEye camera models to a 3D camera system customized to your requirements. With different base lines and focal lengths, working distances of more than 5 meters can be realized and objects with volumes of several cubic meters can be captured, such as heavily laden pallets or entire rooms. The first Ensenso XR models feature 1.6 MP Sony sensors and are protected by IP65/67 against dirt, dust, splash water or cleaning agents, as well as against accidental shifting of the optics.
Hirata HV-P Series
Working distance 250-1500 mm
No reviews yet.
Application setting is easy with the combination of Hirata robot, for operations as workpiece picking from bulk pile. Registration of multiple tasks is supported. Editing (addition, setting, delete and copy) is also possible. Task resigtrations per workpiece type and operation by switching tasks is available. Projection of 7 colors (white, red, green, blue, cyan, magenta, yellow) is available.System can select optimal color according to surface type of workpiece.Supports connections with Hitata robot and HNC controller.Connection can be availablle by its standard setting.
See all M-HD2 Alternatives
