Qviro Palletizer with 7th axis and one AMR tending 8 pallet stations around Specifications

No reviews yet.
Write a review!

Ranked Nr. 26 of 61 Turnkey Robot Solutions

See all 61 Turnkey Robot Solutions

The FANUC M410iB-140H industrial palletizer is designed for high-capacity operations, featuring a payload of up to 140 kg. It is mounted on a Gudel Track Motion Floor (TMF-3), which provides an additional axis of movement, allowing it to tend to eight pallet stations efficiently. With a maximum stacking height of 3200 mm, the robot can achieve up to 1900 palletizing cycles per hour, making it one of the fastest palletizing solutions in its class.

This system integrates seamlessly with a McMaster conveyor for product feeding, ensuring a continuous supply to the palletizer. After the palletizing process, an autonomous mobile robot (AMR) transports the finished pallets to subsequent processes, enhancing overall logistics efficiency. The AMR features self-charging capabilities with dedicated power stations, which minimizes downtime and optimizes operational workflows.

Customizable in terms of dimensions and configurations, this palletizing solution can be tailored to meet specific industry requirements, making it suitable for diverse applications, including manufacturing, food and beverage, and consumer goods. Its robust design and high throughput make it ideal for environments where efficiency and scalability are critical.

NAMEVALUEUNIT
Length20000mm
Width10560mm
Height3200mm
Max. Speed Robotup to 1900 palletizing cyclescycles/h
Max. Speed Track Motion Floor120-150m/min
Stacking Height3200mm
Axes6
Lifting Capacity140kg
Track Motion Floor Payload20000-40000N

Palletizer with 7th axis and one AMR tending 8 pallet stations around Alternatives

See all 85 Turnkey Robot Solutions

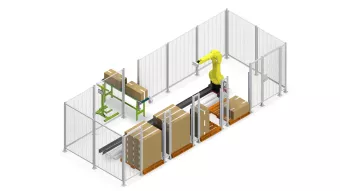

Qviro FANUC M20iB_25 on linear axis tending 4 pallets
