Rockwell Automation 445L Guardshield™ POC Type 4 Micro 400 safety light curtains Specifications

No reviews yet.
Write a review!

Ranked Nr. 155 of 122 Safety Scanners

FIND SUPPLIER

See all 122 Safety Scanners

Our Bulletin 445L Guardshield™ POC Type 4 Micro 400 safety light curtains are economical three-box safety light curtains in a small housing. Designed for use in benign industrial environments (IP54), this light-duty system is targeted to the semi-conductor, micro electronic and small assembly machine markets. We also offer these light curtains in cascadable configurations and in IP69K enclosures. The Micro 400 requires a dedicated controller such as the MSR41 for ON/OFF applications or the MSR42 for advanced safety functionality.

Compact Type 4, SIL 3, PLE safety light curtains
M12 connector on 20 in. pigtails
Minimal dead space of optic heads
Typical applications for the POC Type 4 GuardShield™ Micro 400 Light Curtains include:

Food and beverage (IP69K)
Light assembly machines/equipment
Micro-electronics
Pharmaceutical
Semi-conductor

Optical Safety Device
  • Safety Light Curtain
  • Safety Scanner

445L Guardshield™ POC Type 4 Micro 400 safety light curtains Downloads

445l in005 en p
You need to register to download this file.

445L Guardshield™ POC Type 4 Micro 400 safety light curtains Alternatives

See all 216 Safety Scanners
Autonics Type 4 safety light curtain SFLA Series

5/5 (1)

The SFLA series safety light curtains are installed in potentially dangerous or hazardous areas to safeguard personnel from injury. The light curtains feature proven technology from Autonics area sensors and mapping sensors. The light curtains are built to meet internationally safety standards and regulations. Various detection models (finger/hand/hand-body detection) and safety functions are available for diverse applications. The dedicated software atLightCurtain allows real-time status monitoring user settings such as automatic muting/blanking area functions.
BANNER Type 4 safety light curtain EZ-SCREEN LS SERIES
Scanning range 12m

5/5 (1)

BANNER's EZ-SCREEN LS light curtains are a reliable and easy-to-use safety device designed for machine safeguarding in challenging manufacturing and packaging environments. With three resolutions available, ranging from 14 mm to 40 mm, and a range of up to 12 m, these light curtains provide end-to-end sensing with no blind zones. The aluminum housing and metal end caps protect each emitter and receiver against impacts, while highly visible alignment indicators and intuitive diagnostics make setup and troubleshooting a breeze.The EZ-SCREEN LS system requires no PC software or DIP switches for quick and easy configuration. The dual scan technology ensures high immunity to EMI, RFI, ambient light, weld flash, and strobe light. The no blind zone design eliminates gaps in detection, while the system can cascade up to four systems of any length, resolution, and number of beams.These light curtains are certified to Type 4 per IEC 61946, Category 4 PLe per EN ISO13849.1, and SIL3/SILCL3 per IEC 61508/IEC 62061, exceeding OSHA/ANSI control reliability requirements. The EZ-SCREEN LS pair model numbers come with an LS receiver, LS emitter, end-cap bracket kit, and center-mount bracket kit, making them a reliable choice for a range of manufacturing and packaging applications.
BANNER Type 2 Series
No reviews yet.
30 mm Resolution Type 2 Safety Light Curtains Compact optical safeguarding solution is designed for lower-risk applications where risk of injury is limited but some guarding is necessary.Designed for lower-risk applications such as bump or bruise, knock-down, trapping but not crushing, or minor cuts and abrasionsFeatures simple, two-piece integrated system with no control boxDetects narrow objects, such as a hand or ankleOffered with 30 mm resolution and 15 m rangeProvides economical, compact optical safeguardingMeets Type 2 requirements per IEC61496-1/-2 and Category 2 per EN954-1Available in trip (auto reset) or latch (manual reset) models

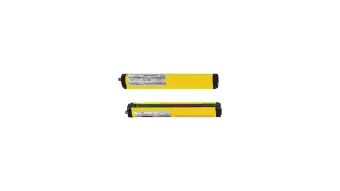

Rockwell Automation 440L and 445L Guardshield POC Type 2 Low Risk Safety Light Curtains
No reviews yet.
Our Bulletin 440L and 445L Guardshield™ POC Type 2 Low Risk safety light curtains are applied in applications where a formal risk assessment has determined that the hazard poses a low risk of operator injury. Offers simple installation and a high degree of reliabilityProvides efficient connectivity through M12 quick-disconnectsOptically synchronized, which eliminates hard-wiring for synchronizationOffers simplified setup though integrated laser alignment system (Safe 2 only)Provides a rugged IP65 enclosure ratingTypical applications for the POC Type 2 GuardShield™ Safety Light Curtain include:ConveyorsPackaging machinery (excluding palletizers)Textile machineryAutomated assembly linesAutomatic storage and retrieval machinery
Rockwell Automation 440L Type 4 and 445L Safe 4 GuardShield PAC Safety Light Curtains
No reviews yet.
Our Bulletin 440L Type 4 and 445L Safe 4 Guardshield PAC Safety Light Curtains are based on the individual safety light curtain platforms and are used for whole-body detection. They are typically positioned around an area or in front of a machine process entry or exit areas. These devices are applied in applications where a formal risk assessment has determined that the hazard poses a moderate to high risk of operator injury. Bulletin 440L Type 4 PAC Safety Light CurtainsOffers multiple models:StandardStandard with integrated laser alignmentArmorBlock® Guard I/O™ connectivityOffers advanced functions:Beam codingExternal device monitoringMachine test signalStart/restart interlockProvides efficient connectivity through M12 quick-disconnectsOptically synchronized, which eliminates hard-wiring for synchronizationOffers simplified setup though Integrated laser alignment systemProvides a rugged IP65 enclosure rating Bulletin 445L Safe 4 PAC Safety Light CurtainsProvides efficient connectivity through M12 quick-disconnectsOffers optical synchronization, which eliminates hard wiring for synchronization simplified setup though Integrated laser alignment systemProvides a rugged IP65 enclosure ratingOffers a wide operating range:0…18 m (0…59.05 ft)5…30 m (16.4…98.4 ft)

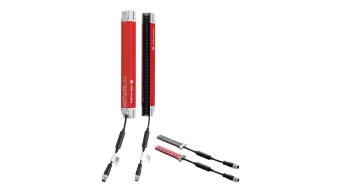

Rockwell Automation 450L GuardShield POC Safety Light Curtains
No reviews yet.
Our Bulletin 450L GuardShield™ POC safety light curtains are unlike traditional safety light curtains, which are based on separate transmitter and receiver units. Patented technology allows each transceiver to be used as a transmitter or receiver via an innovative plug-in module. The 450L-B is the basic model with on/off functionality. The advanced 450L-E model features integrated laser alignment, cascading, and integrated muting. Connection over EtherNet/IP makes the 450L-E light curtain a smart safety device that enhances safety while providing connectivity through The Connected Enterprise®Includes patented technology that allows each transceiver to be used either as a transmitter or receiver via an innovative plug-in moduleFeatures an active protective field that senses over the entire length of a transceiverOffers a wide range of protection heights 150…1950 mm (5.9…76.7 in.) in increments of 150 mm (0.5 ft)Features a compact housing design 30 x 30 mm (1.18 x 1.18 in.)Provides easy configuration of the start mode, external device monitoring (EDM), and scanning range by DIP switches on the plug-in modulesProvides basic on/off functionality (450L-B only)Bulletin 450L-E Safety Light CurtainsOffers enhanced features including integrated laser alignment, longer operating range and options for cascading, blanking and integrated mutingFeatures integrated laser alignment for fast and reliable installationOffers built-in cascading and integrated muting capabilities Typical applications for the Bulletin 450L-B Safety Light Curtains include:Electronic fencesForming operationsRobot cellsPressesWorkstations

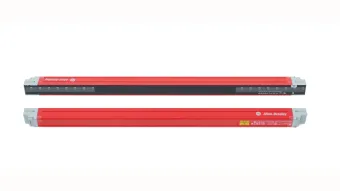

Rockwell Automation 440L Guardshield POC Type 4 Safety Light Curtains
