TM Robotics TH250A Pricing & Product Details
Ranked Nr. 160 of 163 SCARA Robots
TH250A Pricing
Choose your model
TH180
Reach 180mm | Repeatability 0mm | Payload 2kg
TH250A
Reach 250mm | Repeatability 0mm | Payload 3kg
TH350A
Reach 350mm | Repeatability 0mm | Payload 3kg
TH450A
Reach 450mm | Repeatability 0mm | Payload 5kg
TH550A
Reach 550mm | Repeatability 0mm | Payload 5kg
TH650A
Reach 650mm | Repeatability 0mm | Payload 10kg
TH850A
Reach 850mm | Repeatability 0mm | Payload 20kg
TH1050A
Reach 1050mm | Repeatability 0mm | Payload 20kg
TH1200A
Reach 1200mm | Repeatability 0mm | Payload 20kg
Price indication:
TH250A Overview

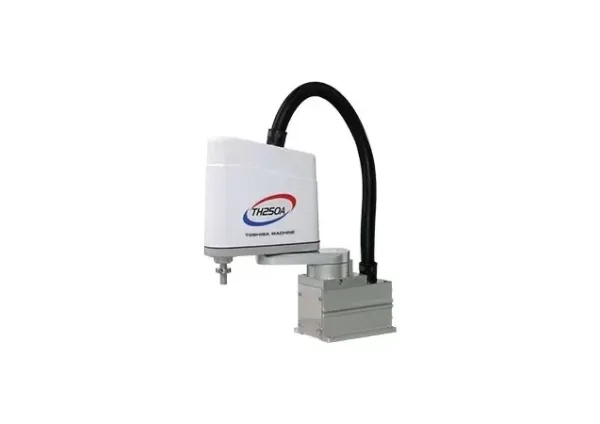

What is TH250A?
The maximum speed of the TH250A is 12% faster than the earlier TH250 model, boasting an arm length of 250mm, and a maximum payload capacity of 3kg.
This robot supports options such as cleanroom design, IP65 and ceiling-mount types.
This size of model is ideal for hard disc manufacturing lines, inspection processes after machining, plastic parts handling and more.
Product Features & Benefits:
Heavy duty arm
Rigid arm structure
Highest payload in its class
Up to 20kg payload
Arm lengths from 180 to 1200mm
Ideal for end of line packaging and assembly work
What are the specifications of TH250A?
| Payload | 3 kg |
| Horizontal Reach | 250 mm |
| Repeatability | ±0.01 mm |
