TM Robotics TH250A Specifications

No reviews yet.
Write a review!

Ranked Nr. 160 of 163 SCARA Robots

FIND SUPPLIER

See all 163 SCARA Robots

The maximum speed of the TH250A is 12% faster than the earlier TH250 model, boasting an arm length of 250mm, and a maximum payload capacity of 3kg.

This robot supports options such as cleanroom design, IP65 and ceiling-mount types.

This size of model is ideal for hard disc manufacturing lines, inspection processes after machining, plastic parts handling and more.


Product Features & Benefits:
Heavy duty arm
Rigid arm structure
Highest payload in its class
Up to 20kg payload
Arm lengths from 180 to 1200mm
Ideal for end of line packaging and assembly work

Choose your model:
TH180 Reach 180mm | Repeatability 0mm | Payload 2kg TH250A Reach 250mm | Repeatability 0mm | Payload 3kg TH350A Reach 350mm | Repeatability 0mm | Payload 3kg TH450A Reach 450mm | Repeatability 0mm | Payload 5kg TH550A Reach 550mm | Repeatability 0mm | Payload 5kg TH650A Reach 650mm | Repeatability 0mm | Payload 10kg TH850A Reach 850mm | Repeatability 0mm | Payload 20kg TH1050A Reach 1050mm | Repeatability 0mm | Payload 20kg TH1200A Reach 1200mm | Repeatability 0mm | Payload 20kg
Payload 3 kg
Horizontal Reach 250 mm
Repeatability 0 mm
Product mass 14 kg

TH250A Alternatives

See all 217 SCARA Robots
TM Robotics TH550A
Reach 550mm | Repeatability 0mm | Payload 5kg
No reviews yet.
The TH550A is a high-speed SCARA robot with an arm length of 550mm and maximum payload capacity of 5kg.It supports options such as cleanroom design, IP65, and ceiling-mount type. Product Features & Benefits:Heavy duty armRigid arm structureHighest payload in its classUp to 20kg payloadArm lengths from 180 to 1200mmIdeal for end of line packaging and assembly work

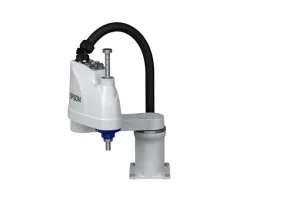

Epson LS3-B SCARA Robot - 400mm
