TM Robotics TH350A Specifications

No reviews yet.
Write a review!

Ranked Nr. 160 of 163 SCARA Robots

FIND SUPPLIER

See all 163 SCARA Robots

With the same maximum speed as the TH250A robot, the TH350A is faster than the earlier TH350 models.

Accelaration and cycle time are improved through the use of highly rigid gears.

The clean-room-grade lubricant for the ball screw spline makes the TH350A ideal for clean-room applications.


Product Features & Benefits:
Heavy duty arm
Rigid arm structure
Highest payload in its class
Up to 20kg payload
Arm lengths from 180 to 1200mm
Ideal for end of line packaging and assembly work

Choose your model:
TH180 Reach 180mm | Repeatability 0mm | Payload 2kg TH250A Reach 250mm | Repeatability 0mm | Payload 3kg TH350A Reach 350mm | Repeatability 0mm | Payload 3kg TH450A Reach 450mm | Repeatability 0mm | Payload 5kg TH550A Reach 550mm | Repeatability 0mm | Payload 5kg TH650A Reach 650mm | Repeatability 0mm | Payload 10kg TH850A Reach 850mm | Repeatability 0mm | Payload 20kg TH1050A Reach 1050mm | Repeatability 0mm | Payload 20kg TH1200A Reach 1200mm | Repeatability 0mm | Payload 20kg
Payload 3 kg
Horizontal Reach 350 mm
Repeatability 0 mm
Product mass 14 kg

TH350A Alternatives

See all 217 SCARA Robots
TM Robotics TH250A
Reach 250mm | Repeatability 0mm | Payload 3kg
No reviews yet.
The maximum speed of the TH250A is 12% faster than the earlier TH250 model, boasting an arm length of 250mm, and a maximum payload capacity of 3kg. This robot supports options such as cleanroom design, IP65 and ceiling-mount types. This size of model is ideal for hard disc manufacturing lines, inspection processes after machining, plastic parts handling and more. Product Features & Benefits:Heavy duty armRigid arm structureHighest payload in its classUp to 20kg payloadArm lengths from 180 to 1200mmIdeal for end of line packaging and assembly work
Janome Servo SCARA JS3 Series
Reach 350-550 mm | Repeatability 0mm | Payload 3-6 kg
No reviews yet.
Features Make operation settings without writing a new robot language Dedicated Pick & Place software prepared with all the command types you need. Just choose the robot movements from the menu.Pre-programmed software shortens setup and teaching time. Top Class High Speed Movement and Short Standard Cycle Time Maximum Speed: 8,300mm/sec　　Standard Cycle Time: 0.29secEnhanced high speed movement and continuous operability for increased productivity. Cable and Tube Passage Inside the Robot Mechanism Internal wiring and air tubing to minimize interference from peripheral devices and cables. Expanded Pivot Axis Operating Range The area behind the robot is accessible, eliminating wasteful extra movement and increasing robot installation flexibility. Additional Robot Maintenance Functions Use the robot's running data record as a guide for when to perform maintenance or replace consumable parts. Comprehensive External Interfaces LAN (Ethernet) port, USB memory port, 6 Field Network options, add up to 2 optional auxiliary axes. Making Programs Is Easy Use our original PC software or our teaching pendant. Optional Teaching Pendant II Our interactive input method makes direct teaching easy. Optional "JR C-Points II" PC software Large icons on the software screen make program creation easy.Create, edit and save teaching data and customizing data.We also offer a convenient point graphic editing function*. ①Programming AreaDirectly input and edit program data.②Basic Operation AreaProgram just by choosing the icons you want.③Robot Operations AreaUse the operation icons to make JOG movements. Built-in Simple PLC Function Handles simple communication with external devices; no need for an external PLC. Multilingual Compatibility Switch among 5 display languages with our PC software and 11 display languages on our teaching pendant.
TM Robotics TH180
Reach 180mm | Repeatability 0mm | Payload 2kg
No reviews yet.
The smallest model of our SCARA robot line, the TH180 boasts a compact body with 180mm arm span and a maximum payload of 2kg, making it ideal for use in high precision applications. This tiny robot has the capability of handling several parts at the same time. Product Features & Benefits:Heavy duty armRigid arm structureHighest payload in its classUp to 20kg payloadArm lengths from 180 to 1200mmIdeal for end of line packaging and assembly work
Epson LS3-B SCARA Robot - 400mm
Reach 400mm | Repeatability 0mm | Payload 1-3 kg
No reviews yet.
Performance, speed, payload up to 3 kg and a 400 mm reach. Ideal for high-precision, small-parts assembly, the LS3-B SCARA Robot provides a high-performance solution with features including proprietary Residual Vibration Technology and intuitive Epson RC+® development software. Epson’s powerful servo system allows for low residual vibration, high acceleration and deceleration rates, and high-speed cycle times. Available in an ISO 4 Clean version for critical, dust-free applications, the LS3-B delivers a payload up to 3 kg and a reach of 400 mm. It also supports integrated options including parts feeding, vision, fieldbus interface solutions, RC+ 7.0 API software, teach pendants and customizable GUIs. Residual Vibration Technology Intuitive Epson RC+ development software Smooth start/stop with high accel/decel rates Fast cycle times to optimize part throughput Up to 3 kg payload, reach of 400 mm
TM Robotics TH650A
Reach 650mm | Repeatability 0mm | Payload 10kg
No reviews yet.
The TH650A SCARA robot boasts highly rigid gears in each axis, enabling an increase in acceleration and life span with easy maintenance. Both arms are made from aluminium casting and provides high rigidity, with an arm length of 650mm and a maximum payload capacity of 10kg. Product Features & Benefits:Heavy duty armRigid arm structureHighest payload in its classUp to 20kg payloadArm lengths from 180 to 1200mmIdeal for end of line packaging and assembly work

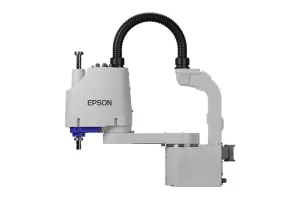

Epson GX4 SCARA Robot - 350mm
