Janome Servo SCARA JS3 Series Specifications

No reviews yet.
Write a review!

Ranked Nr. 192 of 163 SCARA Robots

FIND SUPPLIER

See all 163 SCARA Robots


Features

Make operation settings without writing a new robot language

Dedicated Pick & Place software prepared with all the command types you need. Just choose the robot movements from the menu.
Pre-programmed software shortens setup and teaching time.


Top Class High Speed Movement and Short Standard Cycle Time

Maximum Speed: 8,300mm/sec　　Standard Cycle Time: 0.29sec
Enhanced high speed movement and continuous operability for increased productivity.

Cable and Tube Passage Inside the Robot Mechanism

Internal wiring and air tubing to minimize interference from peripheral devices and cables.


Expanded Pivot Axis Operating Range

The area behind the robot is accessible, eliminating wasteful extra movement and increasing robot installation flexibility.

Additional Robot Maintenance Functions

Use the robot's running data record as a guide for when to perform maintenance or replace consumable parts.

Comprehensive External Interfaces

LAN (Ethernet) port, USB memory port, 6 Field Network options, add up to 2 optional auxiliary axes.


Making Programs Is Easy

Use our original PC software or our teaching pendant.

Optional Teaching Pendant II

Our interactive input method makes direct teaching easy.

Optional "JR C-Points II" PC software

Large icons on the software screen make program creation easy.
Create, edit and save teaching data and customizing data.
We also offer a convenient point graphic editing function*.

①Programming Area
Directly input and edit program data.

②Basic Operation Area
Program just by choosing the icons you want.

③Robot Operations Area
Use the operation icons to make JOG movements.

Built-in Simple PLC Function

Handles simple communication with external devices; no need for an external PLC.

Multilingual Compatibility

Switch among 5 display languages with our PC software and 11 display languages on our teaching pendant.

Payload 3-6 kg
Repeatability 0 mm
Number of Axes
Horizontal Reach 350-550 mm
Extra info AC Servo Motor

Servo SCARA JS3 Series Alternatives

See all 217 SCARA Robots
Epson LS3-B SCARA Robot - 400mm
Reach 400mm | Repeatability 0mm | Payload 1-3 kg
No reviews yet.
Performance, speed, payload up to 3 kg and a 400 mm reach. Ideal for high-precision, small-parts assembly, the LS3-B SCARA Robot provides a high-performance solution with features including proprietary Residual Vibration Technology and intuitive Epson RC+® development software. Epson’s powerful servo system allows for low residual vibration, high acceleration and deceleration rates, and high-speed cycle times. Available in an ISO 4 Clean version for critical, dust-free applications, the LS3-B delivers a payload up to 3 kg and a reach of 400 mm. It also supports integrated options including parts feeding, vision, fieldbus interface solutions, RC+ 7.0 API software, teach pendants and customizable GUIs. Residual Vibration Technology Intuitive Epson RC+ development software Smooth start/stop with high accel/decel rates Fast cycle times to optimize part throughput Up to 3 kg payload, reach of 400 mm
TM Robotics TH550A
Reach 550mm | Repeatability 0mm | Payload 5kg
No reviews yet.
The TH550A is a high-speed SCARA robot with an arm length of 550mm and maximum payload capacity of 5kg.It supports options such as cleanroom design, IP65, and ceiling-mount type. Product Features & Benefits:Heavy duty armRigid arm structureHighest payload in its classUp to 20kg payloadArm lengths from 180 to 1200mmIdeal for end of line packaging and assembly work
Turin Robotic automation SCARA STH100
Reach 600-1000 mm | Repeatability 0mm | Payload 10kg
No reviews yet.
Specifications: * Model: STH100 * Arm Reach: 600/800/1000 mm * Payload: 10 Kg *DOF: 4 Axis *Body Weight: 45-50 Kg *Repeat Accuracy: ± 0.02mm *Working Temperature: 0-45° Characteristics: * Using SHIMPO imported reducer and domestic reducer mix-up configuration * Servo motor standard configuration for domestic listed companies famous brand INOVANCE * Optional imported DuomoChuan servo motor and drive * Imported tama - chuan servo motor and drive are optional * Supports Japanese, Portuguese, Spanish, and English * Can use computer to control the robot based on Ethernet TCP/IP
Hirata AR-TS550H
Reach 550mm | Repeatability 0mm | Payload 2-10 kg
No reviews yet.
Universal usage 'inverted-mount' Scara robot with high speed and high accuracy. The most suitable acceleration and deceleration are established automatically from the posture of the arm and smoother movement is achieved.The load it takes for work holding part by movement is reduced and certain movement is executed. High speed operation realized by robot of 10kg payload.
Hirata AR-T550H
Reach 550mm | Repeatability 0mm | Payload 2-10 kg
No reviews yet.
Universal usage 'inverted-mount' Scara robot with high speed and high accuracy. The most suitable acceleration and deceleration are established automatically from the posture of the arm and smoother movement is achieved.The load it takes for work holding part by movement is reduced and certain movement is executed. High speed operation realized by 360-degree operating robot of 10kg payload.
Epson Epson GX8 SCARA Robot - 550mm
Reach 550mm | Repeatability 0mm | Payload 4-8 kg
No reviews yet.
Epson GX. Taking SCARA robot performance to the next level. Introducing the GX8, part of Epson’s new high-power-density SCARA robot lineup. The GX8 builds upon 40 years of expertise to deliver next-level performance and flexibility in a compact footprint. A breakthrough in productivity, the GX8 uses advanced Epson GYROPLUS technology to provide fast production speeds and smooth motion control, all with higher payloads. Engineered to meet your unique automation needs, the GX8 offers multiple arm configurations and a 450-650 mm reach to accomplish the most demanding tasks—including assembly, pick and place, dispensing, and other material handling with ultra high precision. Its innovative slimline design easily integrates into Cleanroom, ESD or Washdown environments and quickly handles payloads up to 8 kg from a conveniently small form factor. Designed for ease of use, Epson RC+® software works seamlessly with the GX8 to create powerful automation solutions and offers integrated options to simplify the most complex applications. Plus, with battery-less encoders, a built-in Ethernet cable and other useful features, it supports a remarkably low total cost of ownership. Ultra high performance and flexibility Handles high payloads from a small footprint Fast cycle times, smooth motion and fast settling times Epson RC+® software helps create powerful automation solutions Advanced Epson GYROPLUS vibration reduction system Also available in 450 mm and 650 mm
OMRON i4L RS4-2055102
Reach 550mm | Payload 5kg
No reviews yet.
New i4L robot for precision machining, assembly and material handling
OMRON i4L RS4-2055104
Reach 550mm | Payload 5kg
No reviews yet.
New i4L robot for precision machining, assembly and material handling
OMRON i4L RS4-2055004
Reach 550mm | Payload 5kg
No reviews yet.
New i4L robot for precision machining, assembly and material handling
OMRON i4L RS4-2055002
Reach 550mm | Payload 5kg
No reviews yet.
New i4L robot for precision machining, assembly and material handling

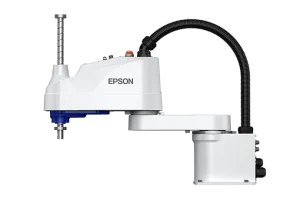

Epson LS6-B SCARA Robot - 500mm
