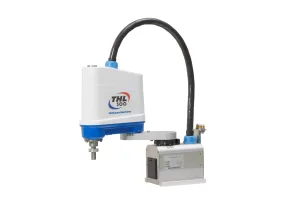

TM Robotics THL1000 Specifications

No reviews yet.
Write a review!

Ranked Nr. 147 of 163 SCARA Robots

FIND SUPPLIER

See all 163 SCARA Robots

The largest THL SCARA Robots include the THL800, THL900, THL1000 and the THL1200 with arm lengths of 800mm, 900mm, 1000mm and 1200mm respectively.

Each THL offers a payload of 10kg. Cycle times (with 2 kg load) are .47s for the THL800 and THL900, and .48s for the THL1000.

All THL robots feature a working envelope of 4 axes, with a Z-axis rotation of 360º with a Z axis movement up to 300mm.

Product Features & Benefits:
Low cost
Light to medium duty
Up to 10kg payload
Arm lengths from 300 to 1000mm
Ideal for loading and unloading applications
Ideal for end of line packaging and assembly work

Choose your model:
THL300 Reach 300mm | Repeatability 0mm | Payload 5kg THL400 Reach 400mm | Repeatability 0mm | Payload 5kg THL500 Reach 500mm | Repeatability 0mm | Payload 10kg THL600 Reach 600mm | Repeatability 0mm | Payload 10kg THL700 Reach 700mm | Repeatability 0mm | Payload 10kg THL800 Reach 800mm | Repeatability 0mm | Payload 10kg THL900 Reach 900mm | Repeatability 0mm | Payload 10kg THL1000 Reach 1000mm | Repeatability 0mm | Payload 10kg THL1200 Reach 1200mm | Repeatability 0mm | Payload 10kg
Number of Axes
Payload 10 kg
Horizontal Reach 1000 mm
Repeatability 0 mm
Product mass 37 kg
