TRAPO Gantry robot HPS series Specifications

No reviews yet.
Write a review!

Ranked Nr. 45 of 36 Cartesian (Gantry) Robots

FIND SUPPLIER

See all 36 Cartesian (Gantry) Robots

Powerful robots: high-performance portal systems
High-performance portal systems from operate on two or three linear axes in cubic space. The gantry robots are designed and manufactured in the company’s own production facility in Gescher-Hochmoor.

Portals show their strength, for example, when heavy parts within a line are lifted across the entire work area in a way that is gentle on the product and material, in order to pass several machining centers.

TRAPO is a specialist in portal robots from its own stainless steel production, developed and produced for special applications in areas with special requirements for hygiene and corrosion resistance.



Portal palletizers operate over production lines
Powerful portals lift the heaviest workpieces. As a result, no additional space is taken up for industrial palletizers within given production. TRAPO portals reliably perform palletizing and depalletizing tasks for various stackable workpieces. Their height is adapted to the spatial conditions.

The portal palletizers move at dynamic speeds that are gentle on the product when picking up and placing high payloads from the conveyor line.
Different, individual robot grippers are possible in combinations for the portal palletizer – developed by TRAPO for the respective task.


Advantages:

GENTLE PRODUCT HANDLING

SUITABLE FOR VARIOUS PACKAGES AND LOAD CARRIERS

LARGE WORKING SPACE DUE TO CARTESIAN AXES

FLEXIBLE IN LENGTH, HEIGHT AND WIDTH

ON REQUEST: SUITABLE FOR CLEAN ROOMS

HIGHER WEIGHTS CAN BE REALIZED AS SPECIAL DESIGN ON REQUEST

INTERMEDIATE LAYER DESIGNS

Number of Axis
Payload 100-500 kg
Extra info Large working space due to cartesian axes / For the care sector in stainless steel design

Gantry robot HPS series Alternatives

See all 47 Cartesian (Gantry) Robots
YAMAHA Gantry type
Payload 50kg
No reviews yet.
Yamaha's Gantry type robots are designed with a guide railing at the end of the Y-axis for additional support, providing greater stability and precision during operation. The gantry type robots are available in 2, 3, or 4 axes configurations, allowing for flexibility in application and movement range.With the gantry type configuration, the Y-axis carriage is supported by two guide rails, one on each side, ensuring stability and accuracy during movement. The guide rails also help to minimize vibration and ensure smooth operation. The additional support provided by the guide rail makes this type of robot ideal for applications that require high precision, such as machining, testing, or inspection.The Gantry type robots are available in 2, 3, or 4 axes configurations, allowing for a wide range of movement options. The X-axis moves horizontally, while the Y-axis moves vertically along the guide rail, providing a large working area. The Z-axis can also be added for up and down movement, and an optional rotary axis can be added for increased flexibility.The Gantry type robots are ideal for applications such as CNC machining, assembly, and inspection, where high precision and stability are essential. They are also used in industries such as automotive, aerospace, and electronics, where high accuracy and repeatability are critical for quality control.
Janome Cartesian robot JC-3 Series
Payload 3-8 kg

3.8/5 (2)

Multifunctional Cartesian robot with plenty of stroke combinations to choose from. All-in-One The multifunctional JC-3 Series Cartesian Robot comes complete with an easy-to-use dedicated controller and robot unit with a rich selection of stroke lengths for each axis.Like our desktop robots, the JC-3 has convenient installation settings. Program teaching is easy; with the interactive method teaching pendant there is no need for complicated settings. Ideal as an inline dispensing or screw tightening robot Our specialized Screw Tightening Specification and Dispensing Specification software greatly shortens your program setting time. We also offer highly versatile Standard Specification software. Uses just the right motors to meet your needs The JC-3 Series uses feedback control stepping motors on the X and Y axes to carry a load up to 8kg, with a maximum acceleration of 5000mm/s2 and a top speed of 800mm/s. Comprehensive Interfacing An Ethernet port (LAN) and 3 COM ports (RS2323C) are included as standard equipment. Install an optional field network port (available types: CC-Link, DeviceNet, PROFIBUS, EtherNet/IP, PROFINET and CANopen).Not only can you specify a program number and run it from the PLC, you can also specify position coordinates and move the robot axes, as well as rewrite the position coordinates in existing programs. Highly compatible for vision system installation Enhanced camera functions to match the needs of assembly facilities aiming for finer precision.In addition to our helpful position correction function, we've added functions such as an automatic calibration function and a CCD camera adjustment function. Control up to 2 external motors with the Auxiliary Axis Function (optional) Teach and control up to 2 stepping motor or servomotor-driven "pulse string input type" external devices from the teaching pendant together with the robot axes. This function has many uses, such as adding a turntable to change the workpiece direction, or setting up and controlling a conveyor from the robot, etc. Easy Program Teaching Using our dedicated application software, teaching is easy for both "Screw Tightening Specifications" and "Dispensing Specifications". Create teaching data based on DXF files or Gerber data using "JR C-Points II" PC software.We offer an optional teaching pendant for teaching via JOG movement. Teaching pendant features 11 different display languages To help personnel from a wide variety of countries operate the robot, we have the following teaching pendant display languages built-in: English, Japanese, French, Spanish, Italian, German, Korean, Simplified Chinese, Traditional Chinese, Czech and Vietnamese. No Homing Movement Needed（Absolute Encoder Model＊1） Using the encoder, the robot memorizes its current position. Homing movements between program runs are unnecessary.＊1 The Absolute Encoder Model is available for 3 axes types only. System Software - User-friendly for both beginners and experienced operators, our original system software comes installed in the robot.
Imanpack Packaging AV100
Payload 0-3 kg
No reviews yet.
2-axis movement robot with gripper or suction cup pick-up head, ideal for handling packaged products and inserting them in boxes. • Vertical arm movement axis with 600 mm stroke.• Horizontal arm movement axis with 600 mm stroke.• Pick-up head with grippers or three suction cups, adjustable to suit product dimensions.• Robot fastener column.• Accident prevention guards.• Separate electrical cabinet.• Rockwell Allen Bradley® control PLC with Imanpack operator interface.• FESTO pneumatic equipment.• RAL 9010 painting.• Machine built according to CE Standards.
Imanpack Packaging Spider robot
Payload 3-3 kg
No reviews yet.
Multi-function High Speed Pick & Place Robot suitable for automatic feeding for horizontal packaging machines, to load bags into cardboard boxes, to orientate and align the products and to control and reject faulty products. • 4 axis piece rotation. • Wide range of action. • Easy accessibility from all sides. • Minor encumbrance. • High product positioning accuracy. • Capacity up to 3 kg. • Extensive flexibility thanks to the individual Pick & Place. • Up to 100 picks a minute (depending on the product). • High productivity rate. • Possibility to apply one or two video cameras to monitor one or two faces of the product. • Machine built according to CE Standards.
ENGEL Cartesian robot Viper
Payload 6-120 kg
No reviews yet.
ENGEL has been building high-performance cartesian robots, also called gantry or linear robots, since 1980. Our viper robots are the perfect addition to your injection molding machine. The innovative and sturdy design offers increased payload capacity with low dead weight. The digital solutions from our inject 4.0 program ensure that all movements are aligned. High load capacity for machines from 30 to 5,500 tons Integrated control concept for easy operation Reduction of cycle time through optimized path planning Flexible connection of gripper solutions
Weiss Group Cartesian robot LP
Payload 8kg
No reviews yet.

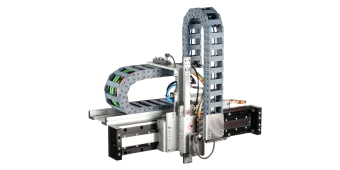

The LP 2D linear portal is an intelligent functional unit that combines mechanics, electronics and software. The main components of this versatile solution are the HN and HL linear motor axes, a modified control system and a wide range of different fieldbus interfaces, including OPC UA. All components are coordinated with each other so that customers just have to specify the strokes, load capacity and desired interfaces to have the system configured as they like and ready for use.
