DESTACO GRIPPING SOLUTIONS FOR OEM APPLICATIONS - G110 & G120 SERIES Specifications

No reviews yet.
Write a review!

Ranked Nr. 378 of 236 Grippers

FIND SUPPLIER

See all 236 Grippers

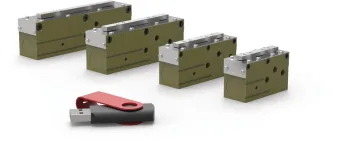

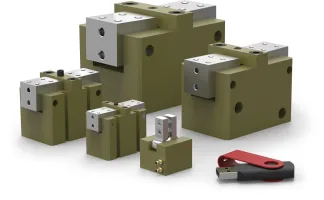

The G110 and G120 series families of grippers include 20 model sizes with varying stroke options. An extended jaw option is offered that is finger compatible with competing products for easier upgrades.

Choose your model:
MULTI-PURPOSE, POWERFUL PARALLEL GRIPPERS FOR HEAVY PARTS – RTH SERIES Parallel WIDE BODY, PARALLEL GRIPPERS FOR HARSH ENVIRONMENTS – RPW SERIES Parallel SEALED, PARALLEL GRIPPERS FOR AUTOMOTIVE ASSEMBLY & PACKAGING – RPS SERIES Parallel LONG STROKE, PARALLEL GRIPPERS FOR FOUNDRIES & HEAVY PARTS HANDLING – RPR SERIES Parallel MINIATURE, PARALLEL GRIPPERS FOR SMALL PART GRIPPING – RPM|RPMC SERIES Parallel LONG, PRECISE PARALLEL GRIPPERS FOR CLEAN ROOMS & HARSH ENVIRONMENTS – RPL|RPLC SERIES Parallel SELF-CENTERING PARALLEL GRIPPERS HEAVY PARTS & LATHE APPLICATIONS – RPC SERIES Parallel PARALLEL GRIPPERS – RPB SERIES Parallel SEALED PARALLEL GRIPPERS FOR AUTOMOTIVE ASSEMBLY APPLICATIONS – RP-5-10 SERIES Parallel SEALED PARALLEL GRIPPERS FOR AUTOMOTIVE ASSEMBLY APPLICATIONS – RP-11-19 SERIES Parallel PRECISION PARALLEL GRIPPERS FOR DELICATE PART HANDLING – RP-P SERIES Parallel MULTIPURPOSE PARALLEL GRIPPERS FOR PICK-AND-PLACE & PART FEED APPLICATIONS – REP-3 SERIES Parallel CAM LEVER PARALLEL GRIPPERS FOR PNEUMATIC & HYDRAULIC OPERATIONS – REP-2 SERIES Parallel RUGGED, MULTI-PURPOSE PARALLEL GRIPPERS FOR HEAVY PARTS – RDH SERIES Parallel MULTIPURPOSE, ROBUST PARALLEL GRIPPERS WITH HIGH REPEATABILITY – PPC SERIES Parallel LONG FINGER PARALLEL GRIPPERS FOR HARSH ENVIRONMENTS – DPW SERIES Parallel PRECISION, LONG FINGER PARALLEL GRIPPERS – DPP SERIES Parallel LONG STROKE, HIGH GRIP FORCE PARALLEL GRIPPERS FOR PICK-AND-PLACE – DPL SERIES Parallel GENERAL PURPOSE MODULAR, PARALLEL GRIPPERS WITH MULTI-POSITION SENSING – DPG SERIES Parallel COMPACT, ROBUST PARALLEL GRIPPERS FOR CONFINED SPACES – DPDS SERIES Parallel GENERAL PURPOSE, PARALLEL MODULAR GRIPPERS FOR HIGH IMPACT APPLICATIONS – DPDL SERIES Parallel PARALLEL OR EXTENDED FINGER GRIPPERS FOR OEM PICK-AND-PLACE APPLICATIONS – CP SERIES Parallel PARALLEL GRIPPERS FOR HYDRAULIC POWERED & WELDING APPLICATIONS – 3P SERIES Parallel PARALLEL GRIPPERS FOR HYDRAULIC POWERED & WELDING APPLICATIONS – 2P SERIES Parallel GRIPPING SOLUTIONS FOR OEM APPLICATIONS - G110 & G120 SERIES Parallel COMPACT, ELECTRIC 2-JAW PARALLEL GRIPPERS FOR ENGINEERING & MANUFACTURING – RPE SERIES Parallel DPE Series Electric Parallel Grippers Electric, 2-Jaw Parallel Grippers Tested for 20+ Million Cycles – DPE Series Parallel 2-JAW ANGULAR GRIPPERS WITH CYLINDRICAL SPRING ASSIST - RUA Angular ANGULAR GRIPPERS WITH TOGGLE LOCKING MECHANISM - RA Angular CAM DRIVEN ANGULAR GRIPPERS - RA Angular 2-JAW ANGULAR GRIPPERS FOR FOOD HANDLING - FUA Angular 2-JAW ANGULAR GRIPPERS – DCT|CT SERIES Angular
Operation type
  • Angular
  • Parallel
  • Vacuum
  • Palletizer
  • Magnetic
  • Adhesive
  • Soft
  • Radial
  • Centric
Energy source
  • Electric
  • Compressed air
  • Hydraulic powered
Extra info Low Maintenance: Shielded design ensures continuous operation in a variety of manufacturing environments / Easy Commissioning: Cost saving installation kits / Compact Design: High force, low profile, with strokes from 5 mm to 50 mm / Increase Productivity: twice the speed over competing units / Economical: Cost effective solutions with short delivery times / Interchangeable Gripper Fingers: Re-use fingers designed for SMC MHZ series for easy installation

GRIPPING SOLUTIONS FOR OEM APPLICATIONS - G110 & G120 SERIES Downloads

2018 GR G110 OEM Gripper Flyer US 3512
You need to register to download this file.
2018 GR OEM Products Flyer GB WEB 2521
You need to register to download this file.
2018 GR T110 OEM Linear Slide Flyer US 3513
You need to register to download this file.
S2 GR OEM OEM Products GB 3079
You need to register to download this file.

GRIPPING SOLUTIONS FOR OEM APPLICATIONS - G110 & G120 SERIES Alternatives

See all 563 Grippers
DESTACO 2-JAW ANGULAR GRIPPERS FOR FOOD HANDLING - FUA
Angular
No reviews yet.
This gripper series is designed for direct product contact in the food zone, according to the food industry standard. (EN 1672-2) All parts are corrosion resistant, non-toxic, non-contaminating, non-porous, non-absorbent and non-reactive. Its stainless steel design resists chemical cleaning procedures. The optional body conforms to FDA standards and is made of High Performance Polymer for a significantly lighter weight. Its electro-polished exterior with no recessed or inaccessible zones prevents retention of contaminants and simplifies cleaning. The sealed motion components (IP69K design) are made for high-pressure and high-temperature daily cleanings. Any metal/metal contact is protected by a gasket for leakproof assembly against bacteria. This angular gripper design offers easier radial sealing of jaws. The optional security springs help with external gripping, in case of air supply failure, in single acting or spring assist mode. There are no external fasteners to avoid any foreign matter in food. This gripper contains special lubricants suitable for food industry and a long maintenance-free service life.
DESTACO PARALLEL GRIPPERS FOR HYDRAULIC POWERED & WELDING APPLICATIONS – 2P SERIES
Parallel
No reviews yet.
Designed for hydraulic powered gripping applications, confined spaces in harsh environments, and welding applications with protective boot option. The 2P Series includes robust, powerful, and precise multi-purpose grippers. Pneumatic or hydraulic powered operation. Optional tandem cylinder doubles grip force. Protective boot and shielded design for harsh environments. Spring assist option maintains grip in case of air pressure loss.
DESTACO PARALLEL GRIPPERS FOR HYDRAULIC POWERED & WELDING APPLICATIONS – 3P SERIES
Parallel
No reviews yet.
Designed for hydraulic powered gripping applications, confined spaces in harsh environment applications, and welding applications with protective boot option. Destaco’s 3P Series includes robust, powerful, and precise multi-purpose grippers. Pneumatic or hydraulic powered operation. Optional tandem cylinder doubles grip force. Protective boot and shielded design for harsh environments. Spring assist option maintains grip in case of air pressure loss. Uses inductive sensors for jaw position detection.
DESTACO PARALLEL OR EXTENDED FINGER GRIPPERS FOR OEM PICK-AND-PLACE APPLICATIONS – CP SERIES
Parallel
No reviews yet.
Designed for OEM pick-and-place machines, packaging applications, and general purpose gripping. Destaco’s CP Series features a compact cam lever design for these general purpose square grippers. Two jaw styles available, parallel or extended finger jaw. Spring assist option for part retention in case of air pressure loss. Standard and extended stroke option available. Shielded design for harsh environments. Magneto-resistive and inductive sensing.
DESTACO CAM DRIVEN ANGULAR GRIPPERS - RA
Angular
No reviews yet.
This cam style gripper is widely used in the industry and is a rugged design that supplies very high grip force for its size. The simplified drive mechanism makes these grippers an excellent value. The body mounts with screws and locates with slip fit dowel pins for accuracy. Fingers attach to jaws with screws and locate by keying.
DESTACO GENERAL PURPOSE, PARALLEL MODULAR GRIPPERS FOR HIGH IMPACT APPLICATIONS – DPDL SERIES
Parallel
No reviews yet.
These parallel grippers are designed for use in machine coolant and metal chip environment applications, high impact applications, and paintbooths or sandblasting applications. These rugged, general purpose modular grippers offer high impact resistance with double wedge design. Harsh environments with sealed rubber boot jaw option. Thru-body mounting and multiple mounting features simplifies installation. Multiple air ports support manifold interface using O-rings. Purge and scavenge ports for harsh & clean environments.
DESTACO ANGULAR GRIPPERS WITH TOGGLE LOCKING MECHANISM - RA
Angular
No reviews yet.
This gripper uses the mechanical advantage of a toggle mechanism that create a very high gripping force at the completion of stroke. At the full closed position the gripper locks in such a way that it cannot unlock unless air pressure is supplied to open the gripper. If air pressure is lost catastrophically, the gripper will not release the part that is being held.
DESTACO DPE Series Electric Parallel Grippers Electric, 2-Jaw Parallel Grippers Tested for 20+ Million Cycles – DPE Series
Parallel
No reviews yet.
As easy as a pneumatic gripper to control and operate, these electric parallel grippers are plug and play with no programming, tuning or adjusting required. The units only 3W required, can be driven directly by most PLC’s without a separate power supply, and can be battery driven for remote applications. They offer 20+ million cycles with zero maintenance! This higher reliability eliminates down time and offers the lowest cost of ownership or any gripper – pneumatic or electric. The built-in electronics are sealed within the gripper, and there’s no external control board needed. 4-pin/wire control cable sold separately. 24 VDC, 4-wire input: power, ground, open and closed signals. 100% duty cycle for high throughput.
DESTACO LONG, PRECISE PARALLEL GRIPPERS FOR CLEAN ROOMS & HARSH ENVIRONMENTS – RPL|RPLC SERIES
Parallel
No reviews yet.
Designed for clean room and harsh environments (RPLC), delicate part handling with valve controls, projecting requiring long, precise gripper fingers, and high temperature applications using Viton® seals. Excellent part positioning and repeatability. Zero side play using low friction Dual-V roller bearings. Class 10 rated clean-room (RPLC) fits life sciences applications. Low friction for operation in low pressure applications, corrosion resistant design (RPLC). Optional non-synchronous jaw operation with 30°C to +150°C [-20°F to +300°F] operating environment using Viton® seals option. Purge port (RPLC) to prevent contaminants entering gripper. Scavenge port (RPLC) prevents gripper grease from contaminating working environment.
DESTACO MINIATURE, PARALLEL GRIPPERS FOR SMALL PART GRIPPING – RPM|RPMC SERIES
Parallel
No reviews yet.
Ideal for semiconductor and life sciences laboratory applications, ultra-small gripper for space constrained applications, and sealed design operates in harsh environments (RPMC). Viton® seals option for high temperature applications -30°C to +150°C [-20°F to +300°F]. Miniature gripper for small part gripping. Zero side play due to Dual V bearing system. Low friction and smooth operation for precise part position repeatability. Create compact gripper arrays with top manifold design. Adjustable pre-load screws eliminates side play over life of unit. Purge and scavenge ports for clean/harsh environment operation. Units are lubricated with clean-room grease and hold a class 10 rating for clean-rooms (RPMC).
DESTACO LONG STROKE, PARALLEL GRIPPERS FOR FOUNDRIES & HEAVY PARTS HANDLING – RPR SERIES
Parallel
No reviews yet.
Designed for foundry applications, gantry systems, and large heavy part handling. These units are high rigidity and robust long stroke grippers. Grip force of 4559N with strokes from 150mm to 350mm. Rack and pinion for synchronized jaw operation. Optional integral rod lock that lock jaws in position upon air loss. Shaft wiper seals protects internal bearings from contaminants. Optional Viton® seals for high temp applications. Customized sensing and linear encoder solutions available.
