DESTACO MULTIPURPOSE, ROBUST PARALLEL GRIPPERS WITH HIGH REPEATABILITY – PPC SERIES Specifications

No reviews yet.
Write a review!

Ranked Nr. 378 of 236 Grippers

FIND SUPPLIER

See all 236 Grippers

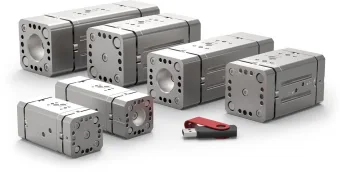

Designed for feed thru work piece applications, optical workpiece inspection via center hole, and part feed/ejection, part cleaning, and part presence capability. Multipurpose robust gripper with high repeatability. Through-hole design for 3rd party tooling, imaging, part ejectors, hoses and sensing. Spring assist option maintains grip in case of air pressure loss. Grip force range from 1474N to 4332N with repeatability of +/-0.02mm.

Choose your model:
MULTI-PURPOSE, POWERFUL PARALLEL GRIPPERS FOR HEAVY PARTS – RTH SERIES Parallel WIDE BODY, PARALLEL GRIPPERS FOR HARSH ENVIRONMENTS – RPW SERIES Parallel SEALED, PARALLEL GRIPPERS FOR AUTOMOTIVE ASSEMBLY & PACKAGING – RPS SERIES Parallel LONG STROKE, PARALLEL GRIPPERS FOR FOUNDRIES & HEAVY PARTS HANDLING – RPR SERIES Parallel MINIATURE, PARALLEL GRIPPERS FOR SMALL PART GRIPPING – RPM|RPMC SERIES Parallel LONG, PRECISE PARALLEL GRIPPERS FOR CLEAN ROOMS & HARSH ENVIRONMENTS – RPL|RPLC SERIES Parallel SELF-CENTERING PARALLEL GRIPPERS HEAVY PARTS & LATHE APPLICATIONS – RPC SERIES Parallel PARALLEL GRIPPERS – RPB SERIES Parallel SEALED PARALLEL GRIPPERS FOR AUTOMOTIVE ASSEMBLY APPLICATIONS – RP-5-10 SERIES Parallel SEALED PARALLEL GRIPPERS FOR AUTOMOTIVE ASSEMBLY APPLICATIONS – RP-11-19 SERIES Parallel PRECISION PARALLEL GRIPPERS FOR DELICATE PART HANDLING – RP-P SERIES Parallel MULTIPURPOSE PARALLEL GRIPPERS FOR PICK-AND-PLACE & PART FEED APPLICATIONS – REP-3 SERIES Parallel CAM LEVER PARALLEL GRIPPERS FOR PNEUMATIC & HYDRAULIC OPERATIONS – REP-2 SERIES Parallel RUGGED, MULTI-PURPOSE PARALLEL GRIPPERS FOR HEAVY PARTS – RDH SERIES Parallel MULTIPURPOSE, ROBUST PARALLEL GRIPPERS WITH HIGH REPEATABILITY – PPC SERIES Parallel LONG FINGER PARALLEL GRIPPERS FOR HARSH ENVIRONMENTS – DPW SERIES Parallel PRECISION, LONG FINGER PARALLEL GRIPPERS – DPP SERIES Parallel LONG STROKE, HIGH GRIP FORCE PARALLEL GRIPPERS FOR PICK-AND-PLACE – DPL SERIES Parallel GENERAL PURPOSE MODULAR, PARALLEL GRIPPERS WITH MULTI-POSITION SENSING – DPG SERIES Parallel COMPACT, ROBUST PARALLEL GRIPPERS FOR CONFINED SPACES – DPDS SERIES Parallel GENERAL PURPOSE, PARALLEL MODULAR GRIPPERS FOR HIGH IMPACT APPLICATIONS – DPDL SERIES Parallel PARALLEL OR EXTENDED FINGER GRIPPERS FOR OEM PICK-AND-PLACE APPLICATIONS – CP SERIES Parallel PARALLEL GRIPPERS FOR HYDRAULIC POWERED & WELDING APPLICATIONS – 3P SERIES Parallel PARALLEL GRIPPERS FOR HYDRAULIC POWERED & WELDING APPLICATIONS – 2P SERIES Parallel GRIPPING SOLUTIONS FOR OEM APPLICATIONS - G110 & G120 SERIES Parallel COMPACT, ELECTRIC 2-JAW PARALLEL GRIPPERS FOR ENGINEERING & MANUFACTURING – RPE SERIES Parallel DPE Series Electric Parallel Grippers Electric, 2-Jaw Parallel Grippers Tested for 20+ Million Cycles – DPE Series Parallel 2-JAW ANGULAR GRIPPERS WITH CYLINDRICAL SPRING ASSIST - RUA Angular ANGULAR GRIPPERS WITH TOGGLE LOCKING MECHANISM - RA Angular CAM DRIVEN ANGULAR GRIPPERS - RA Angular 2-JAW ANGULAR GRIPPERS FOR FOOD HANDLING - FUA Angular 2-JAW ANGULAR GRIPPERS – DCT|CT SERIES Angular
Operation type
  • Angular
  • Parallel
  • Vacuum
  • Palletizer
  • Magnetic
  • Adhesive
  • Soft
  • Radial
  • Centric
Extra info Fail-safe grippers / lightweight / Originator of the double-wedge design for long-life, robust grippers / The DirectConnect™ feature allows for a complete multi-axis pick & place solution without the need for transition plates / Low break-away precision grippers for picking up fragile precision parts with high repeatability / Available in a wide range of sizes and configurations /

MULTIPURPOSE, ROBUST PARALLEL GRIPPERS WITH HIGH REPEATABILITY – PPC SERIES Downloads

GR 3 JP PPC US 2542
You need to register to download this file.
GR 3 JP PPC GB 3093
You need to register to download this file.
PPC Maintenance 3823
You need to register to download this file.

MULTIPURPOSE, ROBUST PARALLEL GRIPPERS WITH HIGH REPEATABILITY – PPC SERIES Alternatives

See all 563 Grippers
DESTACO PRECISION, LONG FINGER PARALLEL GRIPPERS – DPP SERIES
Parallel
No reviews yet.
Designed for delicate part handling, low friction, low pressure applications, long finger gripping applications, and non-synchronous applications requiring independent jaw motion. The DPP Series is DESTACO’s highest precision gripper with excellent part position repeatability. Zero side play and smooth operation with shielded Dual-V roller bearing design. Spring assist closed option for increased grip force or for maintaining grip upon air loss. Multiple air port locations simplifies air line routing. Supports up to four sensing positions of jaws. Synchronous or non-synchronous jaw operation. Long life supported with shielded design. Purge/scavenge ports for clean & harsh environments
DESTACO LONG FINGER PARALLEL GRIPPERS FOR HARSH ENVIRONMENTS – DPW SERIES
Parallel
No reviews yet.
DESTACO’s DPW Series is designed for wide part gripping, gantry systems, harsh gripping environments, and long finger applications. Robust wide body gripper with DIRECTCONNECT mounting. Grip force ranges from 222N thru 800N and strokes range from 19mm thru 63.5mm. Rack and pinion design for smooth operation. Its jaws are well supported to grip large and wide parts. Multiple air ports where top ports can be manifolded. Shaft wiper seals for harsh environments. Optional non-synchronous jaw operation.
DESTACO RUGGED, MULTI-PURPOSE PARALLEL GRIPPERS FOR HEAVY PARTS – RDH SERIES
Parallel
No reviews yet.
Designed for high particulate application environments, automotive engine block, gantry systems, and ideal for very heavy part gripping. These units are rugged, multi-purpose powerful grippers. The series includes eight sizes for small lightweight to very large/heavy part gripping. High impact resistant with double wedge design. Shielded gripper to repel metal chips and particulates. Spring assist option maintains grip in case of air pressure loss, while purge and scavenge ports assist in harsh and clean environments. Multi-position sensing for up to four locations.
DESTACO CAM LEVER PARALLEL GRIPPERS FOR PNEUMATIC & HYDRAULIC OPERATIONS – REP-2 SERIES
Parallel
No reviews yet.
Designed for assembly manufacturing cells, packaging applications, and general purpose gripping. Compact cam lever designed, general purpose gripper. Pneumatic and hydraulic operation options. Spring assist option for part retention in case of air pressure loss. Standard and extended stroke option available. Shielded design for harsh environments. Magneto-resistive and inductive sensing.
DESTACO MULTIPURPOSE PARALLEL GRIPPERS FOR PICK-AND-PLACE & PART FEED APPLICATIONS – REP-3 SERIES
Parallel
No reviews yet.
Designed for long cycle life requirements, high vibration environments, pick-and-place, and part feed applications. Multipurpose robust gripper with high repeatability. Spring assist option maintains grip in case of air pressure loss. Uses inductive or magneto resistive sensors for sensing jaw position. Grip force range from 771N to 2235N. Purge and scavenge ports for harsh and clean environments. Repeatability of +/-0.02mm.
DESTACO PRECISION PARALLEL GRIPPERS FOR DELICATE PART HANDLING – RP-P SERIES
Parallel
No reviews yet.
Designed for delicate part handling applications, highly repeatable/precise gripping, and clean application environments. These precision grippers offer excellent part position repeatability, rack and pinion design for precise jaw synchronization, low friction and smooth operation with Dual-V roller bearings. Maintenance free, lubricated cylinder and drive mechanism. Zero side play and maximum jaw support with preloaded bearings and supports up to two sensing positions.
DESTACO SEALED PARALLEL GRIPPERS FOR AUTOMOTIVE ASSEMBLY APPLICATIONS – RP-11-19 SERIES
Parallel
No reviews yet.
Designed for inline part pressing applications, OEM machine pick-and-place, and packaging applications. These units are widely used, robust sealed design grippers for automotive assembly. Double wedge design for high impact applications. Hardened steel bottom for part pressing applications. Inductive jaw location sensing. Grip force range from 178N [40 lbs] to 2669N [600 lbs] and stroke range from 6.4mm [0.25 in] to 50.8mm [2.00 in]
DESTACO SEALED PARALLEL GRIPPERS FOR AUTOMOTIVE ASSEMBLY APPLICATIONS – RP-5-10 SERIES
Parallel
No reviews yet.
Designed for inline part pressing applications, OEM machine pick-and-place, and packaging applications. These units are widely used, robust sealed design grippers for automotive assembly. Double wedge design for high impact applications. Hardened steel bottom for part pressing applications. Inductive jaw location sensing. Grip force range from 178N [40 lbs] to 2669N [600 lbs] and stroke range from 6.4mm [0.25 in] to 50.8mm [2.00 in]
DESTACO PARALLEL GRIPPERS – RPB SERIES
Parallel
No reviews yet.
DESTACO’s RPB Series is a 2-jaw, heavy-duty parallel gripper family that features High accuracy, sealed, low friction a grip force of 2669N, and rack and pinion design for high repeatability, and purge ports for smooth operation in harsh environments. These roller bearing, long stroke grippers are ideal for foundry applications that use gantry systems for heavy part handling.
DESTACO COMPACT, ROBUST PARALLEL GRIPPERS FOR CONFINED SPACES – DPDS SERIES
Parallel
No reviews yet.
Destaco’s DPDS Series includes compact, robust parallel grippers for use in confined spaces requiring a high grip force, as well as multiple part gripping that uses manifold features to create gripper arrays and long finger gripping applications. High impact resistant with double wedge design. Finger mounting on end or bottom of jaws. Thru-body mounting and multiple mounting features simplified installation. Multiple air ports support manifold interface using O-rings. Purge/scavenge ports for harsh & clean environments. Corrosion resistance hardware option.
DESTACO GENERAL PURPOSE MODULAR, PARALLEL GRIPPERS WITH MULTI-POSITION SENSING – DPG SERIES
Parallel
No reviews yet.
Designed for CNC machining applications, chip/dry particulate harsh environments, and non-synchronous jaw or fixed jaw clamp operations. These units are rugged general purpose modular grippers with multi-position sensing up to four locations. Each gripper is shielded to repel metal chips and particulates. The spring assist option maintains grip in case of air pressure loss, along with synchronous or non-synchronous jaw operation. Each unit features multiple air ports to support manifold interface using O-rings and two finger mounting surfaces are present on each jaw.
See all MULTIPURPOSE, ROBUST PARALLEL GRIPPERS WITH HIGH REPEATABILITY – PPC SERIES Alternatives
