Epson LS3-B SCARA Robot - 400mm Specifications

No reviews yet.
Write a review!

Ranked Nr. 115 of 163 SCARA Robots

FIND SUPPLIER

See all 163 SCARA Robots

Performance, speed, payload up to 3 kg and a 400 mm reach.

Ideal for high-precision, small-parts assembly, the LS3-B SCARA Robot provides a high-performance solution with features including proprietary Residual Vibration Technology and intuitive Epson RC+® development software. Epson’s powerful servo system allows for low residual vibration, high acceleration and deceleration rates, and high-speed cycle times. Available in an ISO 4 Clean version for critical, dust-free applications, the LS3-B delivers a payload up to 3 kg and a reach of 400 mm. It also supports integrated options including parts feeding, vision, fieldbus interface solutions, RC+ 7.0 API software, teach pendants and customizable GUIs.


Residual Vibration Technology

Intuitive Epson RC+ development software

Smooth start/stop with high accel/decel rates

Fast cycle times to optimize part throughput

Up to 3 kg payload, reach of 400 mm

Product mass 14 kg
Horizontal Reach 400 mm
Repeatability 0 mm
Payload 1-3 kg

LS3-B SCARA Robot - 400mm Downloads

2020 robot spec catalog 1
You need to register to download this file.

LS3-B SCARA Robot - 400mm Alternatives

See all 217 SCARA Robots
Mitsubishi Electric RH-3CRH4018-D-S15
Reach 180-400 mm | Repeatability 0mm | Payload 3kg

4.9/5 (3)

Industrial Robot; RH-3CRH-D; 4-axis; +/- 0,01mm; 3kg; 400/180mm; incl. CR800
FANUC SR-3iA
Reach 400mm | Payload 3kg

4.4/5 (1)

With its 3 kg payload, 400 mm horizontal and 200 mm vertical reach, the FANUC SR-3iA is ideally suited to smaller-scale assembly, pick and place, inspection and packaging applications. Operating within a 360° envelope, the model’s lightweight design, ultra-compact footprint and integrated services minimise the risk of interference with peripheral devices.
Epson Synthis T3 All-in-One SCARA Robots
Reach 150-400 mm | Repeatability 0mm | Payload 1-3 kg
No reviews yet.
The Ultimate Slide Alternative: Efficient operation and seamless integration Faster installation vs. linear-slide systems Compact design; built-in controller Powerful Epson RC+ programming software 400mm arm length; 3Kg max payload Looking to automate your factory without wasting time or money on complex slide-based solutions? Now you can — with the Synthis T3 SCARA robot from Epson, the #1 SCARA robot manufacturer in the world. This innovative all-in-one offers fast, easy integration and takes less time to install than most automation solutions available. What about space constraints? The T3 virtually eliminates that issue. With a built-in controller, 110 V (or 220 V) power and integrated vision guidance, as well as other options, this space-saving robot has it all — and installs in minutes. Plus, it includes the same intuitive software and powerful features found in Epson’s high-end robots.
TM Robotics THL400
Reach 400mm | Repeatability 0mm | Payload 5kg
No reviews yet.
THL series SCARA robots include the THL300 and THL400 with arm lengths of 300mm and 400mm respectively. Each THL offers a payload of 5kg. Cycle times (with 2kg load) are 48s for the THL300 and 47s for the THL400. All THL robots feature a working envelope of 4 axes, with a Z-axis rotation of 360°. Maximum speeds range from from 5.1m/s to 6.3m/s overall. Product Features & Benefits:Low CostLight to Medium DutyUp to 10kg PayloadArm lengths from 300 to 1000mmIdeal for loading and unloading applications
EVS 4 Axis High Speed High Rigidity SCARA Robot EVS3-400H
Reach 400mm | Repeatability 0mm | Payload 1-3 kg
No reviews yet.
Scara robot with compact and flexible structure, fast running speed, high transmission accuracy and low noise Robotic automation highly rigid arm design realizes high load and high speed in one package Available in 600 to 1000mm arm span; 1kg to 20kg payload Adapt to G3 control cabinet, provide 23 input and 23 output custom IO; support serial port, network, USB and other interface forms Cnc robot suitable for handling, palletizing, assembly, 3C and other application fields
EVS 4 Axis Universal SCARA Robot EVS3-400
Reach 400mm | Repeatability 0mm | Payload 1-3 kg
No reviews yet.
Scara robot with compact and flexible structure, fast running speed, high transmission accuracy and low noise Robotic automation highly rigid arm design realizes high load and high speed in one package Available in 600 to 1000mm arm span; 1kg to 20kg payload Adapt to G3 control cabinet, provide 23 input and 23 output custom IO; support serial port, network, USB and other interface forms Cnc robot suitable for handling, palletizing, assembly, 3C and other application fields
DENSO LPH-040
Reach 400-1000 mm | Repeatability 0mm | Payload 3-20 kg
No reviews yet.
High-performance, low-priced, compact and light weight SCARA Robot! Total arm length｜400mmMaximum payload｜3kgPosition repeatability｜±0.02mm EVP2 can be built into the controller Easy Setting of Image Processing Operations without ProgrammingEVP2 is an image processing application specially developed for use with a “pick & place” robot.This software offers enhanced functionality and several times greater processing power than the previous EVP application, while maintaining the same ease of operation.Gripper Design with High Degree of Freedom The maximum moment of inertia of the T-axis is large in order to provide a gripper design with a high degree of freedom.* Also supports use in other configurations including in an overhanging position.Reduction in Work Time without the Use of PLC The robot and surrounding equipment can be controlled together according to the purpose through use of the high-performance controller RC8 function. This feature realizes a total cost down for equipment.Enables Control from PLC with No Programming Knowledge Required Utilizing the command-slave function provided as a free option enables the direct control of the robot from PLC through the Function Block (FB) feature that supports 130 types of robot commands that can be openly programmed from PLC.This feature allows adjustments to be performed with only PLC knowledge without needing to create programs on the robot side, to realize a reduction in work time for initial adjustments at the start of use.
Janome Servo SCARA JS3 Series
Reach 350-550 mm | Repeatability 0mm | Payload 3-6 kg
No reviews yet.
Features Make operation settings without writing a new robot language Dedicated Pick & Place software prepared with all the command types you need. Just choose the robot movements from the menu.Pre-programmed software shortens setup and teaching time. Top Class High Speed Movement and Short Standard Cycle Time Maximum Speed: 8,300mm/sec　　Standard Cycle Time: 0.29secEnhanced high speed movement and continuous operability for increased productivity. Cable and Tube Passage Inside the Robot Mechanism Internal wiring and air tubing to minimize interference from peripheral devices and cables. Expanded Pivot Axis Operating Range The area behind the robot is accessible, eliminating wasteful extra movement and increasing robot installation flexibility. Additional Robot Maintenance Functions Use the robot's running data record as a guide for when to perform maintenance or replace consumable parts. Comprehensive External Interfaces LAN (Ethernet) port, USB memory port, 6 Field Network options, add up to 2 optional auxiliary axes. Making Programs Is Easy Use our original PC software or our teaching pendant. Optional Teaching Pendant II Our interactive input method makes direct teaching easy. Optional "JR C-Points II" PC software Large icons on the software screen make program creation easy.Create, edit and save teaching data and customizing data.We also offer a convenient point graphic editing function*. ①Programming AreaDirectly input and edit program data.②Basic Operation AreaProgram just by choosing the icons you want.③Robot Operations AreaUse the operation icons to make JOG movements. Built-in Simple PLC Function Handles simple communication with external devices; no need for an external PLC. Multilingual Compatibility Switch among 5 display languages with our PC software and 11 display languages on our teaching pendant.
Turin Robotic automation SCARA STH100
Reach 600-1000 mm | Repeatability 0mm | Payload 10kg
No reviews yet.
Specifications: * Model: STH100 * Arm Reach: 600/800/1000 mm * Payload: 10 Kg *DOF: 4 Axis *Body Weight: 45-50 Kg *Repeat Accuracy: ± 0.02mm *Working Temperature: 0-45° Characteristics: * Using SHIMPO imported reducer and domestic reducer mix-up configuration * Servo motor standard configuration for domestic listed companies famous brand INOVANCE * Optional imported DuomoChuan servo motor and drive * Imported tama - chuan servo motor and drive are optional * Supports Japanese, Portuguese, Spanish, and English * Can use computer to control the robot based on Ethernet TCP/IP

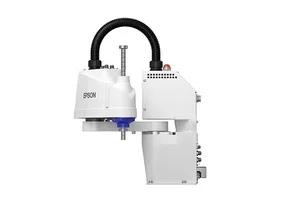

Epson T3-B All-in-One SCARA Robot
Reach 400mm | Repeatability 0mm | Payload 1-3 kg
No reviews yet.
Value without compromise. The ultimate slide alternative. An innovative alternative to complex, slide-based systems, the improved T3-B All-in-One SCARA Robot installs in minutes and easily integrates into existing workflows, helping users save time and money. Designed to seamlessly fit in a variety of workspaces, this all-in-one solution features a built-in controller, power for end-of-arm tooling and 110 V or 220 V power—virtually eliminating any space-constraint issues. Plus, it offers a 400 mm reach and a payload of up to 3 kg to easily handle a variety of tasks. The perfect choice for automation experts and novices alike, the T3-B makes it easy to create an array of solutions with two powerful development environments, Epson RC+® and Epson RC+ Express. Ideal for virtually any application, Epson RC+ redefines automation efficiency by offering a comprehensive suite of advanced tools and features in one convenient, integrated environment. Alternatively, all-new Epson RC+ Express helps coding newcomers get up and running quickly with an intuitive, no-code, visual-based robot teaching environment that easily handles simple applications. Offering powerful features at an incredible value, the T3-B All-in-One SCARA Robot is an extraordinary value-without-compromise automation solution.

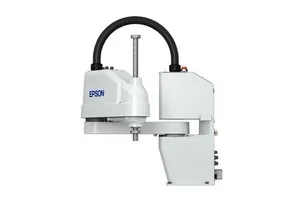

Epson Synthis T6 All-in-One SCARA Robots
Reach 600-400 mm | Repeatability 0mm | Payload 2-6 kg
No reviews yet.
Powerful, low-cost automation solution. The ultimate slide alternative. The Synthis T6 All-in-One SCARA robot from Epson, the #1 SCARA robot manufacturer in the world, offers the perfect way to automate your factory without wasting time or money on expensive, complex, slide-based solutions. This innovative alternative installs in minutes and virtually eliminates any space-constraint issues. A unique all-in-one solution, it features a built-in controller and power for end-of-arm tooling. Plus, it includes Epson RC+® development software, 110 V and 220 V power, and the same advanced features found in Epson’s high-end robots. A powerful arm design offers a reach of 600 mm and a payload up to 6 kg. And, it’s all available at an ultra low cost.
See all LS3-B SCARA Robot - 400mm Alternatives
