Industrial Robot; RH-3CRH-D; 4-axis; +/- 0,01mm; 3kg; 400/180mm; incl. CR800

RH-3CRH4018-D-S15 Downloads

6d40d8c0 d288 11eb 8b56 b8ca3a62a094 l09107b
You need to register to download this file.
494f8090 2600 11eb 901c b8ca3a62a094 bfp a3609c
You need to register to download this file.
Bfp a3606p
You need to register to download this file.

RH-3CRH4018-D-S15 Alternatives

See all 216 SCARA Robots
Mitsubishi Electric RH-6CRH6020-D-S15
Reach 200-600 mm | Repeatability 0mm | Payload 6kg

4.9/5 (3)

Industrial Robot; RH-6CRH-D; 4-axis; +/- 0,02mm; 6kg; 600/200mm; incl. CR800
Epson LS3-B SCARA Robot - 400mm
Reach 400mm | Repeatability 0mm | Payload 1-3 kg
No reviews yet.
Performance, speed, payload up to 3 kg and a 400 mm reach. Ideal for high-precision, small-parts assembly, the LS3-B SCARA Robot provides a high-performance solution with features including proprietary Residual Vibration Technology and intuitive Epson RC+® development software. Epson’s powerful servo system allows for low residual vibration, high acceleration and deceleration rates, and high-speed cycle times. Available in an ISO 4 Clean version for critical, dust-free applications, the LS3-B delivers a payload up to 3 kg and a reach of 400 mm. It also supports integrated options including parts feeding, vision, fieldbus interface solutions, RC+ 7.0 API software, teach pendants and customizable GUIs. Residual Vibration Technology Intuitive Epson RC+ development software Smooth start/stop with high accel/decel rates Fast cycle times to optimize part throughput Up to 3 kg payload, reach of 400 mm
Mitsubishi Electric RH-6CRH7020-D-S15
Reach 200-700 mm | Repeatability 0mm | Payload 6kg

4.9/5 (3)

Industrial Robot; RH-6CRH-D; 4-axis; +/- 0,02mm; 6kg; 700/200mm; incl. CR800
TM Robotics TH180
Reach 180mm | Repeatability 0mm | Payload 2kg
No reviews yet.
The smallest model of our SCARA robot line, the TH180 boasts a compact body with 180mm arm span and a maximum payload of 2kg, making it ideal for use in high precision applications. This tiny robot has the capability of handling several parts at the same time. Product Features & Benefits:Heavy duty armRigid arm structureHighest payload in its classUp to 20kg payloadArm lengths from 180 to 1200mmIdeal for end of line packaging and assembly work
TM Robotics THL400
Reach 400mm | Repeatability 0mm | Payload 5kg
No reviews yet.
THL series SCARA robots include the THL300 and THL400 with arm lengths of 300mm and 400mm respectively. Each THL offers a payload of 5kg. Cycle times (with 2kg load) are 48s for the THL300 and 47s for the THL400. All THL robots feature a working envelope of 4 axes, with a Z-axis rotation of 360°. Maximum speeds range from from 5.1m/s to 6.3m/s overall. Product Features & Benefits:Low CostLight to Medium DutyUp to 10kg PayloadArm lengths from 300 to 1000mmIdeal for loading and unloading applications

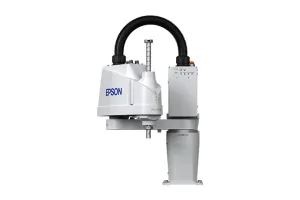

Epson Synthis T3 All-in-One SCARA Robots
Reach 150-400 mm | Repeatability 0mm | Payload 1-3 kg
No reviews yet.
The Ultimate Slide Alternative: Efficient operation and seamless integration Faster installation vs. linear-slide systems Compact design; built-in controller Powerful Epson RC+ programming software 400mm arm length; 3Kg max payload Looking to automate your factory without wasting time or money on complex slide-based solutions? Now you can — with the Synthis T3 SCARA robot from Epson, the #1 SCARA robot manufacturer in the world. This innovative all-in-one offers fast, easy integration and takes less time to install than most automation solutions available. What about space constraints? The T3 virtually eliminates that issue. With a built-in controller, 110 V (or 220 V) power and integrated vision guidance, as well as other options, this space-saving robot has it all — and installs in minutes. Plus, it includes the same intuitive software and powerful features found in Epson’s high-end robots.
Janome Servo SCARA JS3 Series
Reach 350-550 mm | Repeatability 0mm | Payload 3-6 kg
No reviews yet.
Features Make operation settings without writing a new robot language Dedicated Pick & Place software prepared with all the command types you need. Just choose the robot movements from the menu.Pre-programmed software shortens setup and teaching time. Top Class High Speed Movement and Short Standard Cycle Time Maximum Speed: 8,300mm/sec  Standard Cycle Time: 0.29secEnhanced high speed movement and continuous operability for increased productivity. Cable and Tube Passage Inside the Robot Mechanism Internal wiring and air tubing to minimize interference from peripheral devices and cables. Expanded Pivot Axis Operating Range The area behind the robot is accessible, eliminating wasteful extra movement and increasing robot installation flexibility. Additional Robot Maintenance Functions Use the robot's running data record as a guide for when to perform maintenance or replace consumable parts. Comprehensive External Interfaces LAN (Ethernet) port, USB memory port, 6 Field Network options, add up to 2 optional auxiliary axes. Making Programs Is Easy Use our original PC software or our teaching pendant. Optional Teaching Pendant II Our interactive input method makes direct teaching easy. Optional "JR C-Points II" PC software Large icons on the software screen make program creation easy.Create, edit and save teaching data and customizing data.We also offer a convenient point graphic editing function*. ①Programming AreaDirectly input and edit program data.②Basic Operation AreaProgram just by choosing the icons you want.③Robot Operations AreaUse the operation icons to make JOG movements. Built-in Simple PLC Function Handles simple communication with external devices; no need for an external PLC. Multilingual Compatibility Switch among 5 display languages with our PC software and 11 display languages on our teaching pendant.
EVS 4 Axis High Speed High Rigidity SCARA Robot EVS3-400H
Reach 400mm | Repeatability 0mm | Payload 1-3 kg
No reviews yet.
Scara robot with compact and flexible structure, fast running speed, high transmission accuracy and low noise Robotic automation highly rigid arm design realizes high load and high speed in one package Available in 600 to 1000mm arm span; 1kg to 20kg payload Adapt to G3 control cabinet, provide 23 input and 23 output custom IO; support serial port, network, USB and other interface forms Cnc robot suitable for handling, palletizing, assembly, 3C and other application fields
EVS 4 Axis Universal SCARA Robot EVS3-400
Reach 400mm | Repeatability 0mm | Payload 1-3 kg
No reviews yet.
Scara robot with compact and flexible structure, fast running speed, high transmission accuracy and low noise Robotic automation highly rigid arm design realizes high load and high speed in one package Available in 600 to 1000mm arm span; 1kg to 20kg payload Adapt to G3 control cabinet, provide 23 input and 23 output custom IO; support serial port, network, USB and other interface forms Cnc robot suitable for handling, palletizing, assembly, 3C and other application fields

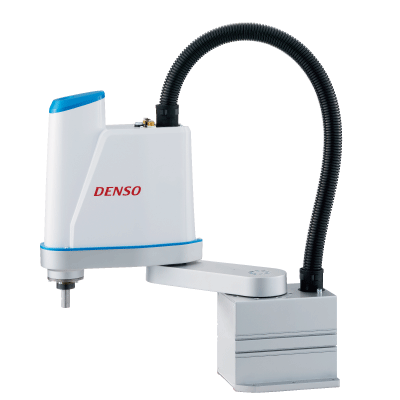

DENSO LPH-040
Reach 400-1000 mm | Repeatability 0mm | Payload 3-20 kg
No reviews yet.
High-performance, low-priced, compact and light weight SCARA Robot! Total arm length|400mmMaximum payload|3kgPosition repeatability|±0.02mm EVP2 can be built into the controller Easy Setting of Image Processing Operations without ProgrammingEVP2 is an image processing application specially developed for use with a “pick & place” robot.This software offers enhanced functionality and several times greater processing power than the previous EVP application, while maintaining the same ease of operation.Gripper Design with High Degree of Freedom The maximum moment of inertia of the T-axis is large in order to provide a gripper design with a high degree of freedom.* Also supports use in other configurations including in an overhanging position.Reduction in Work Time without the Use of PLC The robot and surrounding equipment can be controlled together according to the purpose through use of the high-performance controller RC8 function. This feature realizes a total cost down for equipment.Enables Control from PLC with No Programming Knowledge Required Utilizing the command-slave function provided as a free option enables the direct control of the robot from PLC through the Function Block (FB) feature that supports 130 types of robot commands that can be openly programmed from PLC.This feature allows adjustments to be performed with only PLC knowledge without needing to create programs on the robot side, to realize a reduction in work time for initial adjustments at the start of use.
Turin Robotic automation SCARA STH100
Reach 600-1000 mm | Repeatability 0mm | Payload 10kg
No reviews yet.
Specifications: * Model: STH100 * Arm Reach: 600/800/1000 mm * Payload: 10 Kg *DOF: 4 Axis *Body Weight: 45-50 Kg *Repeat Accuracy: ± 0.02mm *Working Temperature: 0-45° Characteristics: * Using SHIMPO imported reducer and domestic reducer mix-up configuration * Servo motor standard configuration for domestic listed companies famous brand INOVANCE * Optional imported DuomoChuan servo motor and drive * Imported tama - chuan servo motor and drive are optional * Supports Japanese, Portuguese, Spanish, and English * Can use computer to control the robot based on Ethernet TCP/IP
